A landscape lighting system diagram shows how power moves from your home's electrical outlet to the transformer, through low-voltage wiring, and finally to each outdoor light fixture. Most landscape lighting systems run on 12-volt low voltage power, which makes them safer and more homeowner-friendly than line-voltage outdoor lighting.

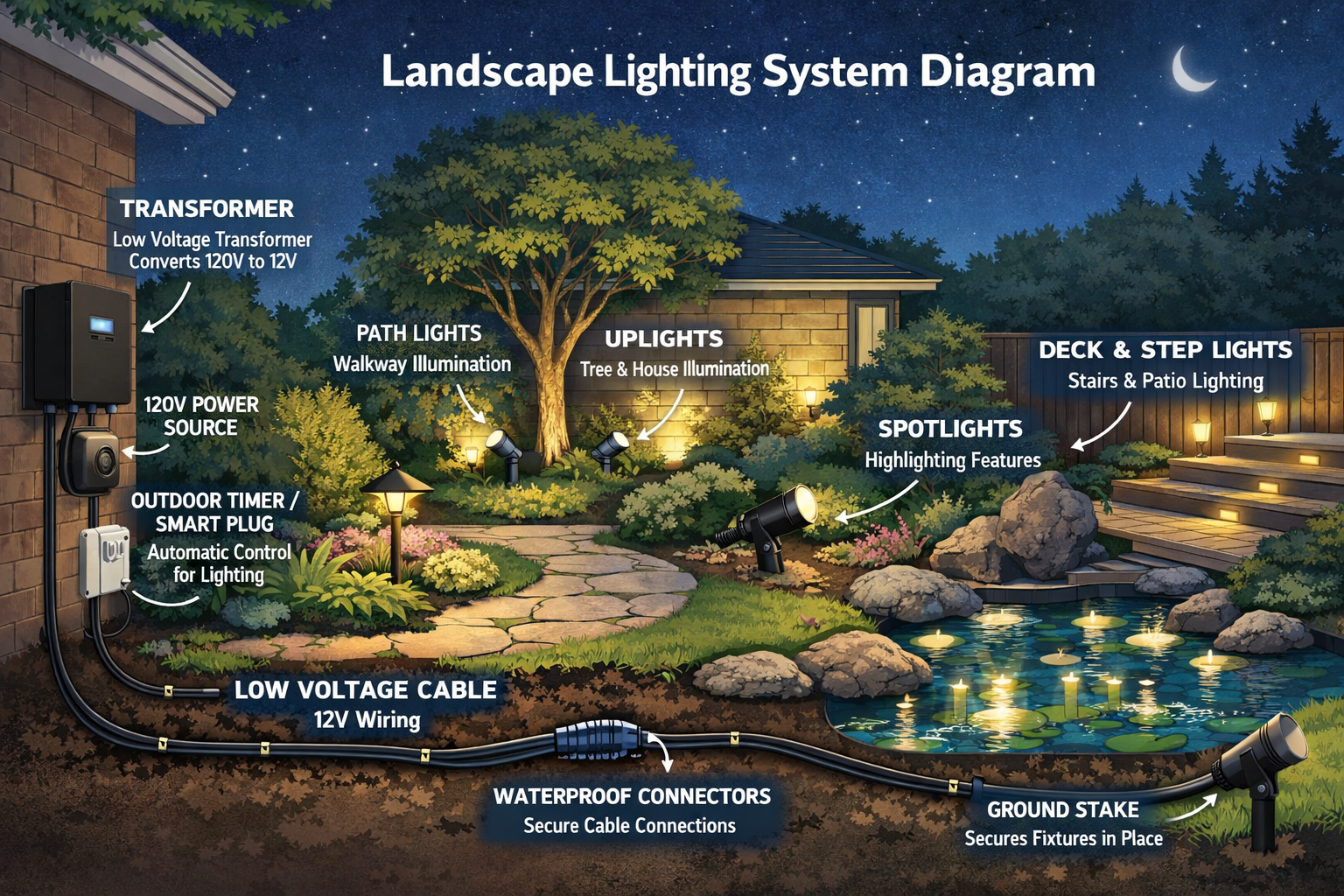

The diagram below helps explain the main parts of a typical landscape lighting system and how they work together. It is also useful for troubleshooting, because once you understand the full system path, it becomes much easier to narrow down whether the problem is the transformer, cable, connectors, or a specific fixture.
If you want to understand how this diagram fits into the full outdoor lighting process, visit our Complete Landscape Lighting Guide. It explains landscape lighting design, layout planning, spacing, wiring, transformers, and system maintenance so homeowners can understand how all parts of the system work together.
A wiring diagram makes more sense when you understand what each part of the system is doing. Before studying cable paths, transformers, and fixture connections, visit how landscape lighting works for a plain-language explanation of how low-voltage landscape lighting systems operate across a home and yard.
How a Landscape Lighting System Works
The easiest way to understand a low voltage landscape lighting diagram is to follow the power from the beginning of the system to the end. Your outdoor outlet provides standard household power. The transformer reduces that power to 12 volts. The low-voltage cable then carries electricity out into the yard, and waterproof connectors attach each fixture to the main run.
House outlet (120v)
↓
Transformer
↓
Low-voltage cable
↓
Waterproof connectors
↓
Landscape light fixtures
That is the foundation of most 12 volt landscape lighting layouts. Once you understand that sequence, the whole system starts making more sense. It also helps you troubleshoot faster. If every light is out, you start near the outlet and transformer. If only one branch is dead, you look closer at the cable run, connectors, or fixtures in that section.
Landscape Lighting System Diagram Explained
A complete landscape lighting wiring diagram should do more than show a cable line and a few lights. It should explain how each part of the system works, because every component plays a role in both performance and troubleshooting.
Transformer
The transformer converts 120-volt household current into 12-volt low voltage power. This is the heart of the system. If the whole system is out, buzzing, repeatedly shutting off, or tripping, the transformer is one of the first components to inspect.
Low Voltage Cable
The cable carries power from the transformer into the yard. Cable size and layout matter more than many homeowners realize. Long runs, too many fixtures on one path, or undersized wire can lead to dim lights and weak performance at the far end of the system.
Waterproof Connectors
Connectors attach fixture leads to the main cable. They are also one of the most common failure points. A weak or poorly seated connector can cause flickering, intermittent operation, or complete fixture failure after rain or irrigation exposure.
Landscape Lights
Fixtures may include path lights, spotlights, deck lights, flood lights, and well lights. If only one light is out, the problem is often at the fixture, bulb, LED module, or local connector. If many fixtures are weak or dead, the issue is usually farther upstream in the system.
Basic Landscape Lighting Wiring Diagram
A simple landscape lighting system diagram usually looks like this:
Outdoor outlet → Transformer → Main low-voltage cable → Individual fixtures
The main cable acts like a power spine running through the yard. Each fixture taps into that cable with a connector. This is why one failed light usually does not shut down the entire system, but a damaged cable or connection earlier in the run can affect everything after it.
This is also why many homeowners searching for a landscape lighting system diagram are really dealing with a troubleshooting problem. They are trying to understand where the system may be breaking down. If that sounds familiar, also review your wire size and connections because voltage loss and poor connector contact are two of the biggest causes of real-world system issues.
Common Landscape Lighting Wiring Layouts
Not every low voltage landscape lighting diagram uses the same layout. The best design depends on the size of the yard, the number of fixtures, and how evenly you want voltage distributed across the system.
Daisy Chain Layout
Transformer → Light → Light → Light
This is common in smaller yards and simpler systems. It is easy to install, but long daisy-chain runs can lead to voltage drop at the farthest fixtures.
T-Connection Layout
Main cable with fixtures branching off different directions.
This works well when lights split around beds, walkways, or patio edges and need to branch from a central run.
Hub Layout
Transformer → Hub → Multiple shorter cable runs
This is often better for larger systems because shorter runs help keep voltage more balanced across fixtures.
Why Layout Choice Matters
The layout is not just an installation detail. It affects brightness, troubleshooting difficulty, cable length, and how evenly the fixtures perform at night.
Homeowners often think the diagram is only for setup, but layout choice is also a major troubleshooting factor. A system with poor layout may technically work while still producing weak, uneven, or unreliable light.
Components of a Landscape Lighting System
The table below gives a quick reference for the main parts shown in a landscape lighting system diagram and why each one matters.
| Component | Purpose | Why It Matters for Troubleshooting |
|---|---|---|
| Transformer | Converts 120-volt household power to 12-volt low voltage | If it fails, overloads, or buzzes loudly, the whole system may go dark or unstable |
| Low Voltage Cable | Carries power from the transformer through the yard | Long runs, damaged insulation, or undersized wire can cause dim or dead lights |
| Waterproof Connectors | Connect fixture leads to the main cable | Loose or wet connectors often cause flickering or one dead section |
| Light Fixtures | Provide path, accent, deck, wall, or spotlight illumination | One failed fixture can sometimes interrupt power farther down the same run |
| Timer or Photocell | Controls when the system turns on and off | If settings are wrong, the system may appear dead even when wiring is fine |
How This Applies to Portfolio Landscape Lighting
If you are installing or troubleshooting Portfolio brand landscape lighting, the system wiring follows the same low-voltage design shown in the diagram above. Portfolio lighting kits usually include transformers, connectors, and fixtures that connect to a main low-voltage cable.
That means the same system logic applies. If your Portfolio path lights are dim, a spotlight branch is dead, or the transformer is acting up, the diagram on this page still gives you the right troubleshooting framework.
Common Landscape Lighting Wiring Problems
A landscape lighting system diagram becomes most useful when you are troubleshooting. These are the most common problems homeowners run into after the system is already installed.
Lights Flickering
Flickering usually points to a weak connector, moisture intrusion, loose fixture lead, or unstable transformer output. If one light flickers, inspect that fixture first. If several flicker together, inspect the shared cable path and transformer output.
Lights Are Dim
Dim lights often point to voltage drop, too many fixtures on one run, or undersized cable. This is especially common when fixtures near the transformer look bright but the farthest ones look weak.
Transformer Buzzing
A little hum can be normal, but loud buzzing may signal overload, wiring problems, or a transformer that is wearing out. If that sounds like your system, read landscape transformer buzzing.
Breaker Tripping or Transformer Shutting Off
This can happen because of overload, a shorted cable, wet wiring, or a failing fixture. It is common after homeowners add lights without recalculating the total load. See landscape transformer overload and landscape transformer not working.
System Problems After Rain
Rain often exposes a weak connector, cracked fixture, or damaged wire jacket. If your system stopped working after wet weather, review landscape lights not working after rain.
Basic Landscape Lighting Installation Steps
Even though this page is positioned as a high-intent diagram and troubleshooting guide, it still helps to see the installation sequence the diagram represents.
1. Plan the layout
Decide where the transformer will go, where the main cable should run, and how many fixtures will be on each branch.
2. Install the transformer near the outlet
Mount the transformer close to a safe outdoor GFCI outlet so the system has a stable power source.
3. Run the low-voltage cable
Lay out the main cable through the yard before burying or securing it so you can test the system first.
4. Connect fixtures with waterproof connectors
Attach each path light, spotlight, deck light, or well light to the cable run using proper connectors designed for low-voltage outdoor use.
5. Test the system before final cleanup
Turn on the transformer, confirm every fixture works, and adjust spacing or aiming before the final finish work.
Landscape Lighting System Diagram FAQ
What voltage is landscape lighting?
Most landscape lighting systems operate on 12-volt low voltage power supplied by a transformer connected to a standard household outlet.
How are landscape lights wired?
Most landscape lights are wired in parallel from a main low-voltage cable. The transformer feeds the cable, and fixtures connect to that cable with waterproof connectors.
How many lights can a landscape transformer support?
That depends on the transformer's wattage and the total watt load connected to it. It is smart to leave extra capacity rather than loading the transformer to the limit.
What wire is used for landscape lighting?
Most systems use 12-gauge or 14-gauge low-voltage cable. The right choice depends on the run length and total fixture load.
Are landscape lights wired in series or parallel?
Most landscape lighting systems are wired in parallel, not series. That layout makes the system easier to expand, troubleshoot, and balance.
Final Thoughts on Landscape Lighting System Diagrams
A good landscape lighting system diagram should do more than show a transformer and a few lights. It should help homeowners understand how low-voltage lighting works, how the parts connect, and where common failures are likely to happen.
That is what makes this page valuable for both installation and troubleshooting. If your system is already acting up, use the diagram as a map. Start at the outlet and transformer, follow the cable path, inspect connectors, and then narrow the issue down to the branch or fixture causing the problem.
From there, move to the specific guide that matches your exact symptom so you can fix the real issue instead of guessing.
