What socket size does a C7 bulb use?

Traditional C7 holiday bulbs generally use an E12 candelabra screw base. Always confirm the marking and physical fit because decorative products can vary.

What socket size does a C9 bulb use?

Traditional C9 holiday bulbs generally use an E17 intermediate screw base. Do not force an E12 or E26 lamp into an E17 socket.

Why does a C7 or C9 bulb work only when tightened hard?

The center contact may be flattened, oxidized, loose, or heat-damaged. A hard-tightened bulb can temporarily bridge the gap but may crack the socket or overheat the connection.

Can a corroded holiday light socket be cleaned?

Minor dry surface oxidation may be cleaned after unplugging, but green copper, pitting, arcing, cracked plastic, or heat discoloration usually justifies socket replacement.

Can I use a C7 socket on C9 wire?

Socket size and cord compatibility are separate. The bulb base must match, and the socket's insulation-piercing geometry must be listed for the exact SPT cord type and conductor spacing.

C7 and C9 Holiday Light Socket Repair and Maintenance: Corrosion, Contacts, Wiring and Safe Replacement

The First Question: Is the Bulb Bad or Is the Socket Bad?

Do not begin by bending contacts or cutting the cord. Start with a two-socket swap test that isolates the bulb from the socket in less than a minute.

Unplug the string and allow hot incandescent bulbs to cool.
Remove the suspect bulb and install it in a known-working socket of the same base size and voltage rating.
Install a known-working bulb in the suspect socket.
Reconnect power only after both lamps are fully seated and hands are clear.
Interpret the result: if the fault follows the bulb, replace the bulb; if the fault stays at the socket, inspect the socket and cord.

Why this test matters: A weak socket can destroy several replacement bulbs and make the bulbs appear defective. A shorted or internally failed bulb can also mislead you into damaging a good socket.

C7 vs. C9: The Differences That Control Repair Compatibility

Feature	C7 Holiday Light	C9 Holiday Light	Repair Consequence
Common screw base	E12 candelabra	E17 intermediate	Bulbs and sockets are not interchangeable
Traditional incandescent lamp size	Smaller decorative envelope	Larger decorative envelope	C9 sockets and cords may carry higher lamp loads
Common use	Windows, rooflines, trees, indoor displays	Rooflines, commercial displays, larger outdoor runs	Exposure and loading differ by installation
LED replacement behavior	Lower wattage but base and voltage must still match	Lower wattage but base and voltage must still match	Do not use “equivalent wattage” for load calculations
Typical socket fault	Flattened center tab, oxidized shell, cracked body	Heat-darkened contact, water intrusion, loose cord piercing	Inspect both electrical contacts and the cord entry

Base designation identifies the metal screw diameter, not the lamp voltage, wattage, indoor/outdoor rating, or LED compatibility. A bulb that physically threads into the socket still must match the electrical rating printed on the string or replacement documentation.

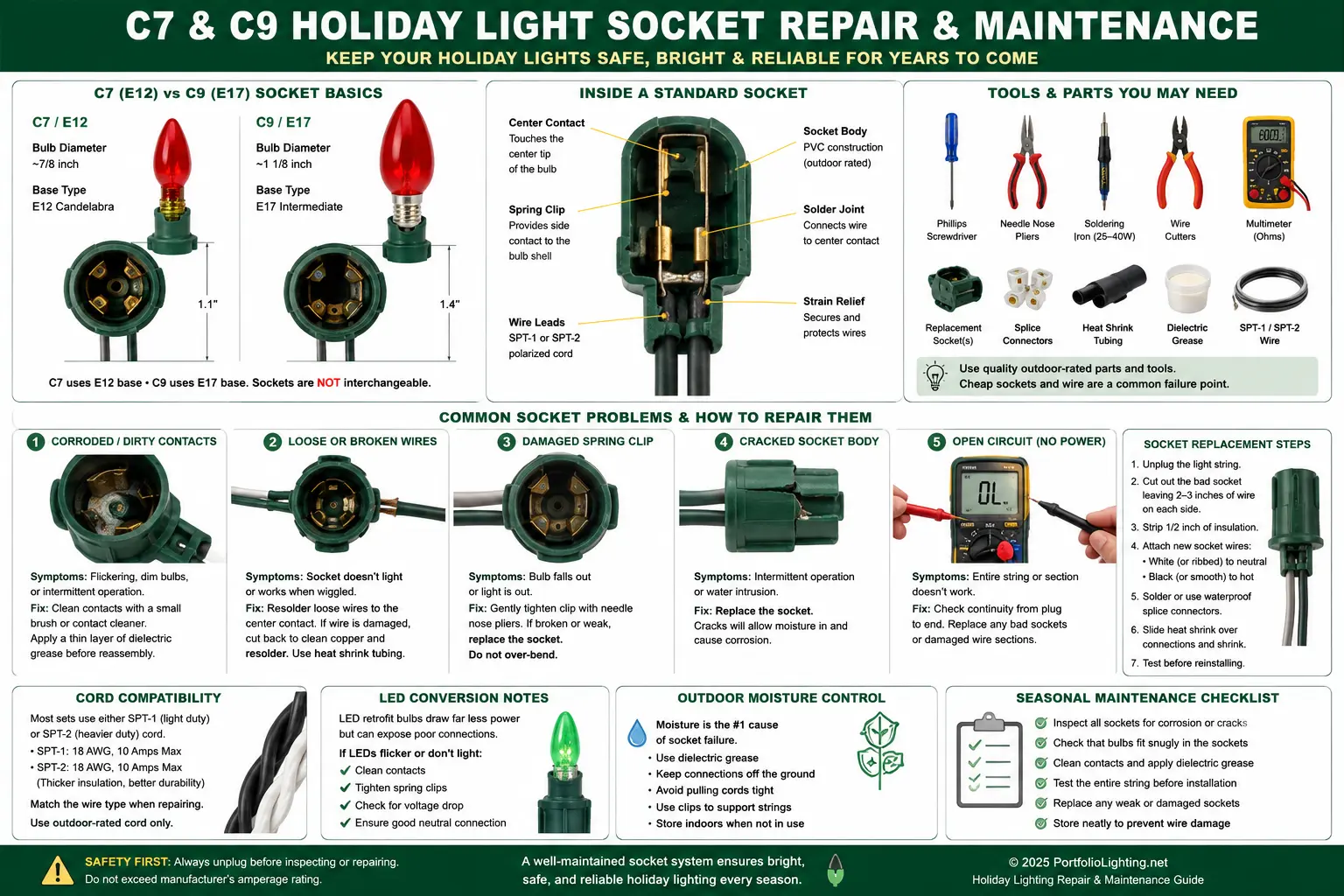

Socket Anatomy: Four Parts Create the Electrical Connection

Center contactThe small contact at the bottom of the socket touches the button at the tip of the bulb base. It can flatten, oxidize, loosen, or arc.

Threaded shell contactThe side contact connects to the threaded metal bulb base. Corrosion here can create flicker even when the center tab looks clean.

Socket bodyThe plastic or molded housing insulates the two contacts and supports the bulb. Cracks, heat deformation, and carbon tracks make it unsafe to reuse.

Cord connectionMany holiday sockets use insulation-piercing contacts that press into flat SPT cord. Correct cord type, spacing, orientation, and clamping pressure are essential.

Do not look only at the bottom tab. A socket can have a raised center contact and still fail because the threaded shell contact is corroded or the cord-piercing contact is loose.

Failure-Signature Matrix

Symptom	Most Likely Cause	Unplugged Inspection	Correct Action
Bulb works only when tightened hard	Flattened center contact or short bulb-base tip	Compare center-tab height and look for pitting	Restore a clean flexible tab slightly or replace socket if damaged
Bulb flickers when touched	Loose shell contact, loose cord piercing, cracked socket	Check bulb wobble, shell tension, and socket body	Replace socket if movement occurs below the bulb base
Socket contains green powder	Moisture reached copper or brass contacts	Inspect for pitting, green strands, and moisture path	Replace socket; cut back cord only when compatible repair method permits
Bulb base is blackened	Arcing, loose contact, excessive heat, wrong lamp wattage	Inspect both bulb and socket for carbon or melting	Replace damaged lamp and socket; verify load
One socket is dead, rest of run works	Local socket contact or connection failure on a parallel string	Perform bulb swap and contact inspection	Replace the individual socket when system design permits
Several sockets fail after rain	Water entry, upward-facing sockets, damaged seals, cord breach	Look for droplets, mineral tracks, and green corrosion	Dry, replace damaged sockets, correct orientation and drip paths
Bulb is difficult to remove	Corroded threads, deformed base, melted socket, overtightening	Do not twist against softened plastic	Use controlled removal; replace socket if threads are damaged
Fuse opens repeatedly	Overload, shorted socket, damaged cord, water path	Inspect the entire run before replacing fuse again	Correct fault and verify total connected wattage

How to Raise a Flattened Center Contact Without Creating a Short

A slightly flattened center contact can sometimes be restored when the socket is clean, dry, unburned, and mechanically sound.

Unplug the string and verify the plug is under your control.
Remove the bulb and inspect the center contact under bright light.
Confirm that no corrosion, carbon, melted plastic, or exposed conductor is present.
Use a small insulated-handled pick or plastic tool to lift the edge of the contact only slightly.
Keep the center contact away from the threaded shell contact.
Install a correct bulb until snug—never force it against the bottom of the socket.

Stop immediately if the contact is loose in the socket, breaks, exposes wiring, springs back flat, or can touch the side shell. Those conditions require socket replacement.

The objective is not to make the tab visibly tall. It is to restore light spring pressure against the bulb's center tip while preserving electrical separation.

Corrosion Repair: What Can Be Cleaned and What Must Be Replaced

Dry gray surface oxidation is different from active green copper corrosion. The color, depth, and location of the damage determine whether cleaning is reasonable.

Clean and Reinspect

Light dry surface film, firm contacts, no pitting, no heat discoloration, intact socket body, and no corrosion at the cord entry.

Replace the Socket

Green deposit, pitted contact, weak spring pressure, intermittent connection, damaged threads, cracked plastic, or recurring moisture.

Retire the String

Multiple burned sockets, brittle cord, widespread green copper, repeated fuse operation, damaged plug, or unknown non-listed repairs.

Do not pack the socket with ordinary grease, petroleum jelly, or household oil. Excess material can interfere with contact pressure, trap contamination, attack some plastics, and migrate under heat. Prevention should focus on correct bulb seating, downward or sheltered orientation, drainage, dry storage, and replacement of damaged weather seals where the product uses them.

SPT-1 and SPT-2 Cord: Why Replacement Sockets Must Match the Wire

Many custom C7 and C9 strings use flat parallel lamp cord. SPT-1 and SPT-2 can look similar, but their insulation thickness differs. A socket designed to pierce one type may not clamp or penetrate the other correctly.

Compatibility Check	What to Verify	Failure if Ignored
Cord designation	SPT marking printed or molded on cord	Pins fail to reach copper or damage insulation
Conductor spacing	Socket channel matches flat-cord geometry	One contact misses its conductor
Polarization	Ribbed and smooth conductors stay in intended orientation	Socket shell may be connected to the wrong conductor
Wire gauge	Replacement is listed for the cord size	Loose clamp, overheating, or conductor damage
Indoor/outdoor listing	Socket and cord suit the installation	Moisture and UV failure

Field clue: If a newly installed socket works only when squeezed, the contact pins may not have penetrated the insulation or the socket may be the wrong SPT type.

Replacing a C7 or C9 Socket on Bulk Holiday-Light Cord

Only use a replacement socket specifically designed and listed for the exact bulb base, cord type, wire gauge, voltage, and indoor/outdoor application.

Disconnect the string and remove it from any live daisy chain.
Photograph the original socket orientation and cord polarity markings.
Confirm C7/E12 or C9/E17 base and the SPT cord designation.
Remove the failed socket according to its construction. Do not rip the socket from the cord and leave punctures unaddressed.
Position the listed replacement at an undamaged section when the product instructions allow relocation.
Seat the cord fully in the socket channel and close the back or cap evenly.
Inspect for exposed copper, pin misalignment, cracked plastic, or an incompletely latched cover.
Install the correct lamp and test through a protected receptacle only after the assembly is complete.

Old puncture sites matter. Moving a vampire-style socket can leave insulation holes that admit moisture or expose conductors. Follow the cord and socket manufacturer's approved repair or replacement method rather than covering punctures with ordinary tape.

Stuck Bulb Removal Without Crushing the Socket

Corroded metal threads can bind the bulb base to the socket. Excessive torque can split the plastic socket or twist the socket loose from the cord.

If the glass envelope is intact

Unplug the string, support the socket body with one hand, and turn the bulb base—not the glass tip—with controlled pressure. Wear eye protection and gloves if the bulb is cracked or heavily corroded.

If the glass separates from the metal base

Do not energize the string. Remove the broken lamp base only with the string unplugged. If the base is fused, deformed, or surrounded by burned plastic, replace the socket rather than applying more force.

Do not use penetrating oil inside the socket

Penetrating lubricants can leave combustible or conductive residue, migrate into wire connections, and degrade plastics. A socket seized badly enough to need chemical release is usually a replacement candidate.

Incandescent-to-LED Conversion: Socket Problems That Appear After the Upgrade

LED bulbs reduce load and heat, but they can expose mechanical contact problems because their base dimensions and center-tip profiles may differ slightly from the old incandescent bulbs.

Short center tip

The LED's center contact may not reach a flattened socket tab that the old bulb reached.

Wider plastic collar

A decorative LED shell may bottom against the socket rim before the electrical contacts seat.

Polarity-sensitive electronics

Some LED products behave differently on incorrectly polarized or unusual socket wiring.

Residual corrosion

Lower current does not repair pitted contacts; intermittent operation may continue.

Mixed light appearance

Different LED generations can vary in color, brightness, and dimming even with the same base.

False capacity assumptions

Use actual input watts and string ratings, not brightness-equivalent numbers.

If an LED bulb fails in one socket but works in another, do not sand or alter the bulb base. Correct the socket contact or replace the socket with a compatible part.

Load Planning: The Socket May Be Fine While the String Is Overloaded

Traditional C7 and C9 incandescent lamps can create substantial load. Replacing a blown fuse without calculating connected watts can hide a dangerous overload.

Example	Bulb Count	Watts per Bulb	Lighting Load	Planning Meaning
C7 incandescent display	25	5W	125W	Verify string, plug, fuse, extension-cord, and circuit ratings
C9 incandescent display	25	7W	175W	Large load for one short decorative run
C7 LED retrofit	25	0.8W actual	20W	Much lower load, but socket condition still matters
C9 LED retrofit	25	1W actual	25W	Lower heat and current; verify product ratings

These are examples, not universal lamp values. Use the actual wattage printed on the bulb package. Also respect the string's maximum connected-load and end-to-end connection limits.

Outdoor Water Control: Preventing the Same Socket From Failing Again

Most repeated socket failures begin with orientation and water movement rather than a defective bulb.

Keep sockets from resting in gutters, puddles, wet mulch, or snowmelt paths.
Avoid upward-facing sockets where water can collect around the bulb base.
Create drip loops so water runs away from plug and connector interfaces.
Do not wrap a socket in plastic where condensation becomes trapped.
Replace missing socket gaskets or washers only with compatible parts.
Keep connections elevated and use receptacles with appropriate outdoor protection.
Remove strings carefully so cord insulation is not cut by staples, clips, or roofing edges.

For broader outdoor electrical planning, use the outdoor lighting GFCI requirements guide, outdoor junction-box guide, and outdoor lighting electrical safety guide.

Seasonal Maintenance Schedule

Timing	Inspection	Corrective Action
Before installation	Bulb bases, socket cracks, cord cuts, plug, fuses, labels	Replace defective parts before climbing or mounting
After first rain	Flicker, GFCI trip, water collection, upward-facing sockets	De-energize, dry, correct orientation, replace wet damaged sockets
Midseason	Dark lamps, hot sockets, loose bulbs, discoloration	Perform bulb-swap test and inspect contacts
During removal	Staple cuts, stretched cord, cracked sockets, seized bulbs	Tag defects instead of packing them away
Before storage	Moisture and debris	Dry completely; store loosely in a ventilated container
Before reuse next year	Green corrosion, brittle cord, failed caps, missing labels	Repair with compatible listed parts or retire the string

When One Dead Socket Means the Whole String Should Be Retired

A single replaceable socket fault is different from system-wide aging. Retire the assembly when the cord, plug, fuse holder, or many sockets show deterioration.

The cord jacket cracks when flexed.
Several sockets contain green corrosion or black carbon.
Socket backs are missing or no longer latch.
The plug blades are loose, burned, or heavily corroded.
Fuses open repeatedly after the lamp load is verified.
Previous repairs use wire nuts, open splices, household tape, or mismatched vampire sockets.
The product rating and cord designation cannot be determined.

Do not preserve a failing line-voltage string simply because most lamps still illuminate. Light output does not prove that insulation, socket contacts, and plug connections remain safe.

C7 and C9 Socket Repair FAQ

Why does my C9 bulb light only when I wiggle it?

The side shell contact, center contact, or socket-to-cord connection is loose or corroded. Replace the socket if movement occurs below the bulb base or the plastic is cracked.

Can I bend the contact upward?

A clean, undamaged center tab can sometimes be raised slightly while unplugged. Do not attempt it when there is corrosion, burning, looseness, exposed wire, or risk of the tab touching the shell.

Can I spray contact cleaner into the socket?

Only use a product and method approved for the materials and application. Saturating an assembled outdoor socket can move contamination deeper and leave residue. Replacement is safer when corrosion is established.

Why do new LED bulbs not work in old sockets?

The socket contact may be flattened, the bulb center tip may be shorter, the LED collar may prevent full seating, or the base and voltage may not actually match.

Are all vampire sockets compatible with all flat holiday-light cord?

No. Match the socket to the exact SPT cord type, conductor spacing, wire gauge, bulb base, voltage, and environmental listing.

Electrical Safety and Repair Boundary

C7 and C9 holiday strings can operate at line voltage even though the bulbs are small. Unplug the string before touching bulbs, contacts, sockets, fuses, or cord connections. Replace damaged assemblies with compatible listed components and follow the product instructions.

Do not use improvised open splices, unmatched socket bodies, ordinary tape repairs, or unlisted cord modifications outdoors. When damage extends beyond one serviceable socket, replacement of the complete string is often the safest and least expensive option.
