Quick Answer
Portfolio Lighting model 016107 WHCM432R8 should be repaired by matching the physical lens and fixture body, not by the number alone. Use the model code to narrow the search, then confirm the lens shape, diameter, depth, gasket seat, retaining method, fixture type and heat clearance before ordering a replacement.
The most common mistake is buying a lens or cover that looks close in a photo but does not seal correctly. A poor lens fit can cause fogging, water intrusion, heat cracking, loose covers and repeat fixture failure.
This guide is built for homeowners trying to identify replacement parts, lenses, covers or glass for Portfolio Lighting model 016107 WHCM432R8. Older Portfolio model numbers can be confusing because a label may represent a retail item, a fixture family, a lens assembly, a production run or a component code.
Instead of guessing from one listing photo, this page walks through the practical identification steps: how to measure the lens, inspect the gasket, compare retaining hardware, check whether the fixture is integrated LED or bulb-based, and decide whether the lens alone is worth replacing.
Logic Summary: How to Match 016107 WHCM432R8 Parts
- Use the model code as a clue: 016107 WHCM432R8 helps narrow the search, but physical matching still matters.
- Measure the lens: Record outside diameter, inside seat diameter, depth and edge profile before buying.
- Inspect the gasket seat: A correct lens can still leak if the gasket is flattened, missing or pinched.
- Check the retaining method: Screw-on, twist-lock, snap-tab and compression-ring lenses are not interchangeable.
- Confirm heat clearance: A replacement lens that sits too close to a bulb or LED board can haze, crack or warp.
- Fix the cause, not just the symptom: A cracked lens may point to heat, overtightening, gasket failure or water freezing inside the fixture.
What You Will Learn
How to Identify Portfolio 016107 WHCM432R8 Before Buying Parts
The number 016107 WHCM432R8 should be treated as an identification starting point. It may appear on a sticker, packaging label, lens assembly, fixture body or production tag. Before ordering a replacement lens or part, compare the number with the visible fixture design and physical measurements.
Start with the Portfolio Lighting model number lookup and compare nearby repair resources in the Portfolio Lighting model parts directory. If the label is faded or the fixture has been discontinued, the broader Portfolio model library and repair index can help you keep the search tied to known Portfolio lighting parts instead of random universal listings.
| Identification Area | What to Look For | Why It Matters | Repair Decision |
|---|---|---|---|
| Model label | 016107, WHCM432R8 or a related item/production code | Helps narrow the search but may not identify the lens by itself | Use it with measurements |
| Lens shape | Round, square, domed, flat, frosted, clear or prismatic | Controls optical fit and water sealing | Match shape and depth |
| Retaining method | Screws, clips, tabs, twist-lock or compression ring | Different mounts are not interchangeable | Confirm before ordering |
| Gasket seat | Flat rubber ring, molded seal, foam gasket or missing gasket | Determines whether the lens can seal after replacement | Replace gasket if compressed |
| Fixture type | Low-voltage, line-voltage, solar, integrated LED or bulb-based | Controls heat and electrical compatibility | Verify before buying electronics |

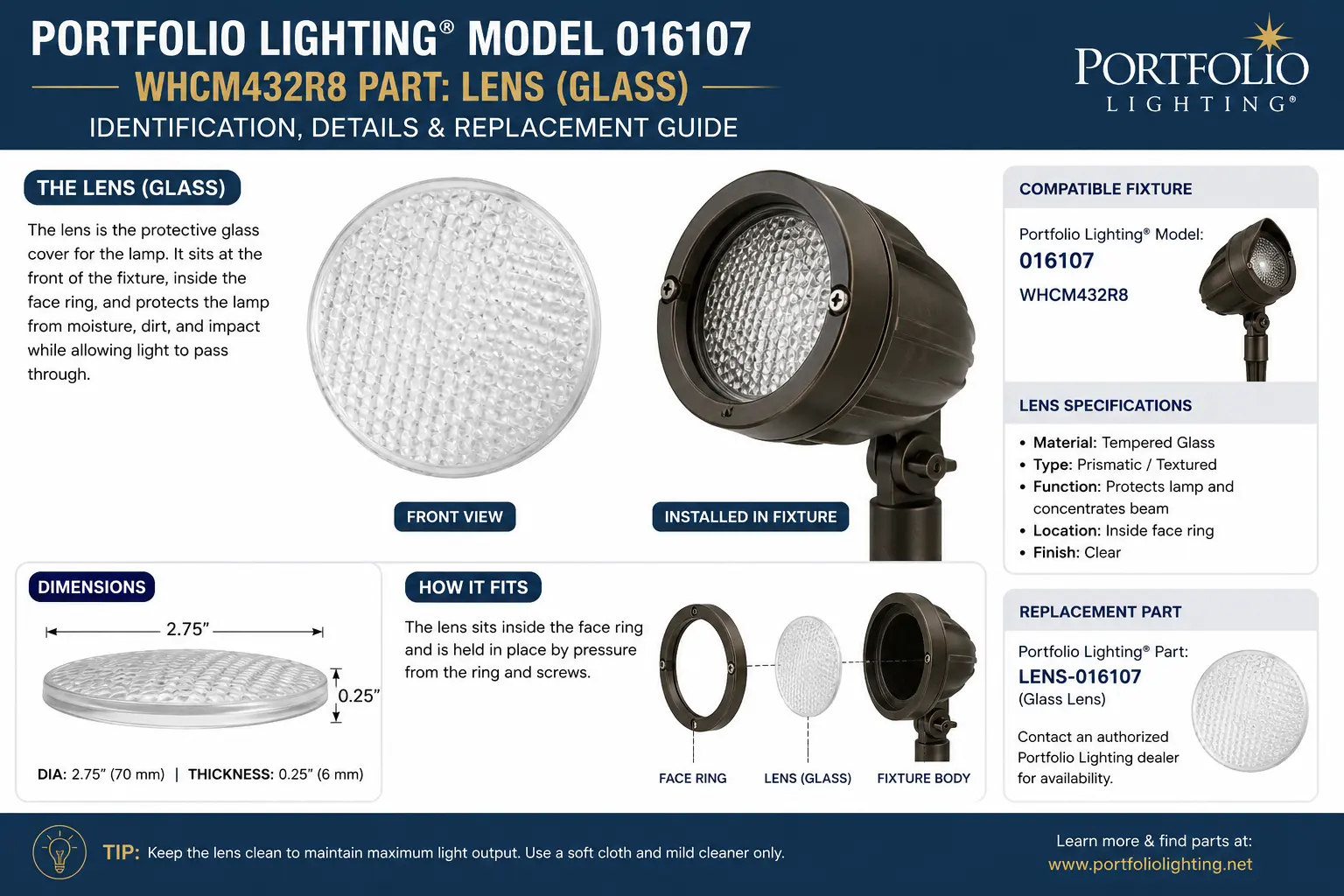

Replacement Lens Matching for Portfolio 016107 WHCM432R8
A replacement lens has to fit mechanically, optically and thermally. The lens must sit in the original seat, allow the gasket to compress evenly, clear the bulb or LED board and match the fixture’s beam pattern. A lens that is slightly too tall, shallow or wide may look acceptable until the first rain or freeze cycle.
If you are comparing replacement lens options, also review the dedicated Portfolio Lighting replacement lenses guide, Portfolio Lighting replacement glass guide and replacement globes and covers resource.
| Measurement | How to Check It | Why It Matters | Common Mistake |
|---|---|---|---|
| Outside diameter | Measure the widest edge of the lens or cover | Controls whether it fits the bezel or retaining ring | Buying by photo only |
| Seat diameter | Measure the opening where the lens rests | Controls sealing and gasket compression | Lens sits on top instead of inside the seat |
| Lens depth | Measure from front face to rear edge | Prevents contact with bulb or LED board | Lens touches bulb and heat cracks |
| Edge profile | Flat lip, stepped lip, rounded edge or tabbed edge | Controls how the lens locks into the fixture | Close diameter but wrong lip shape |
| Retainer spacing | Measure screw holes, tabs or clip locations | Controls mechanical attachment | Lens fits opening but cannot fasten |
Portfolio 016107 WHCM432R8 Parts Map
The lens is only one part of the repair. If the fixture leaked, fogged or cracked, inspect the gasket, bezel, socket, LED board, mounting screws and wire entry point before reassembling. Replacing the lens without fixing the seal or heat issue can cause the same failure again.
For broader replacement planning, use Portfolio Lighting parts and accessories, Portfolio Lighting replacement parts, where to buy Portfolio replacement parts and the Portfolio Lighting compatibility guide.
| Part | Common Failure | What to Inspect | Repair Logic |
|---|---|---|---|
| Lens or cover | Cracked, yellowed, hazed, missing or fogged | Shape, depth, gasket seat and retainer style | Replace if housing is sound |
| Gasket | Flattened, torn, missing or brittle | Compression line and water stains | Replace or reseat before lens install |
| Bezel or retaining ring | Stripped screws, warped ring or broken tabs | Whether the lens is held evenly | Repair hardware first |
| Socket or LED board | Corrosion, blackened contacts or water marks | Whether water reached electrical parts | Replace fixture if severe |
| Wire entry point | Moisture trail, brittle insulation or loose seal | Water can wick into fixture from below | Seal or replace lead |
| Mounting hardware | Loose bracket, rusted screw or cracked stem | Fixture movement can break seals | Stabilize before reassembly |
The 5-Minute Lens Fit Test Before Final Installation
Before tightening screws or snapping a lens into place, dry-fit the replacement part. The lens should sit flat, not rock side-to-side, not pinch the gasket unevenly and not touch the bulb, LED board or reflector. If the fixture has screws, tighten them lightly in a cross pattern instead of crushing one side first.
| Fit Test | Pass | Fail | What to Do |
|---|---|---|---|
| Dry seating | Lens rests evenly in the fixture opening | Lens rocks, tilts or sits high | Recheck diameter and edge profile |
| Gasket compression | Light even compression all around | Pinched, bulging or flattened gasket | Replace gasket or reposition lens |
| Heat clearance | Space remains between lens and bulb/LED board | Lens touches light source | Use shorter bulb or correct lens depth |
| Retainer alignment | Tabs or screws align without force | Hardware must be bent or forced | Wrong lens or wrong retaining ring |
| Water path check | No visible gap at top or seam | Gap remains at lens edge | Do not install outdoors until corrected |
Why 016107 WHCM432R8 Lenses Fog, Crack or Stop Sealing
Lens failure is often a symptom, not the original cause. Outdoor fixtures heat and cool every night. When the light warms up, air inside expands. When it shuts off, air contracts and can pull humid air through weak seals. If the gasket is already compressed or the lens lip is wrong, moisture collects inside and the lens begins to fog.
1. The Heat-Crack Problem
If a replacement bulb or LED retrofit sits too close to the lens, heat can concentrate at the plastic or glass surface. This can create hazing, discoloration or cracking. Always check maximum bulb length and lens clearance before reassembly.
2. The Crushed Gasket Problem
A gasket that is overtightened can stop sealing because it loses spring pressure. It may look tight, but it no longer rebounds during temperature changes. That allows humid air and water vapor to move in and out of the fixture.
3. The Wrong-Lip Problem
Universal lenses often fail because the diameter is close but the edge profile is different. If the lip sits on the wrong side of the gasket or does not reach the original seat, the fixture may leak even when the lens appears to fit.
4. The Freeze Expansion Problem
If water enters the fixture and freezes, expansion can crack lenses, spread bezels and distort retaining rings. A winter crack usually means the seal failed before the crack appeared.
How to Avoid Buying the Wrong 016107 WHCM432R8 Lens or Part
Search the model code first, but do not stop there. Add terms based on the physical part: Portfolio replacement lens, Portfolio replacement glass, Portfolio replacement cover, lens diameter, fixture shape, bezel style, outdoor wall light lens, low-voltage path light lens or Portfolio fixture cover.
If the replacement listing does not show measurements, mounting method and lens depth, treat it as incomplete. A listing with a model code but no measurements may still be wrong if Portfolio used similar codes across production runs.
Related Portfolio Model Guides
If you are building a model-by-model repair path, compare nearby Portfolio resources such as Portfolio model 0157561 flood light parts, Portfolio model 0062582 manual and parts, Portfolio model 0394866 manual and parts, Portfolio model 0482436 manual and parts and Portfolio model 17794-000 manual and parts.
For fixture-level research, also use Portfolio Lighting master model technical database, technical manuals and wiring diagrams and Portfolio technical archive.
Portfolio Lighting Model 016107 WHCM432R8 FAQ
What is Portfolio Lighting model 016107 WHCM432R8?
Portfolio Lighting model 016107 WHCM432R8 should be treated as a model and part-identification number for a Portfolio fixture or fixture family. Because older Portfolio labels may mix item numbers, production codes and component codes, confirm the lens shape, fixture body, mounting hardware and electrical type before buying replacement parts.
How do I find the right replacement lens for Portfolio 016107 WHCM432R8?
Start by measuring the original lens or opening, checking the fixture shape, noting whether the lens is glass, acrylic or diffuser plastic, and photographing the retaining ring, screws, tabs or gasket. Do not buy by model number alone unless the listing clearly matches your fixture.
Can I use a universal lens or cover on model 016107 WHCM432R8?
Sometimes, but only if the diameter, depth, edge profile, mounting method and heat clearance match. A lens that looks close can leak water, pinch the gasket, touch the bulb or fail to seat correctly.
Why does my replacement lens not fit even though the model number looks right?
Portfolio model numbers can refer to kits, fixture families or retail item numbers. Small production changes can affect lens diameter, tab spacing, screw position and gasket shape, so physical measurement is essential.
Should I replace the lens or the whole fixture?
Replace the lens if the housing, socket, LED board, gasket seat and wiring are still sound. Replace the fixture if the housing is cracked, the lens seat is warped, the socket is corroded or the LED driver has failed.
What should I photograph before ordering Portfolio 016107 WHCM432R8 parts?
Photograph the full fixture, lens from front and side, inside gasket area, retaining screws or tabs, fixture label, wire lead, mounting bracket, bulb or LED board and any stamped production code.
Bottom Line
For Portfolio Lighting model 016107 WHCM432R8, the right replacement lens or part depends on physical fit as much as the model number. Measure the lens, inspect the gasket, confirm the retaining method and check heat clearance before buying. That small amount of prep can prevent leaks, fogging, cracked covers and repeat part failures.
