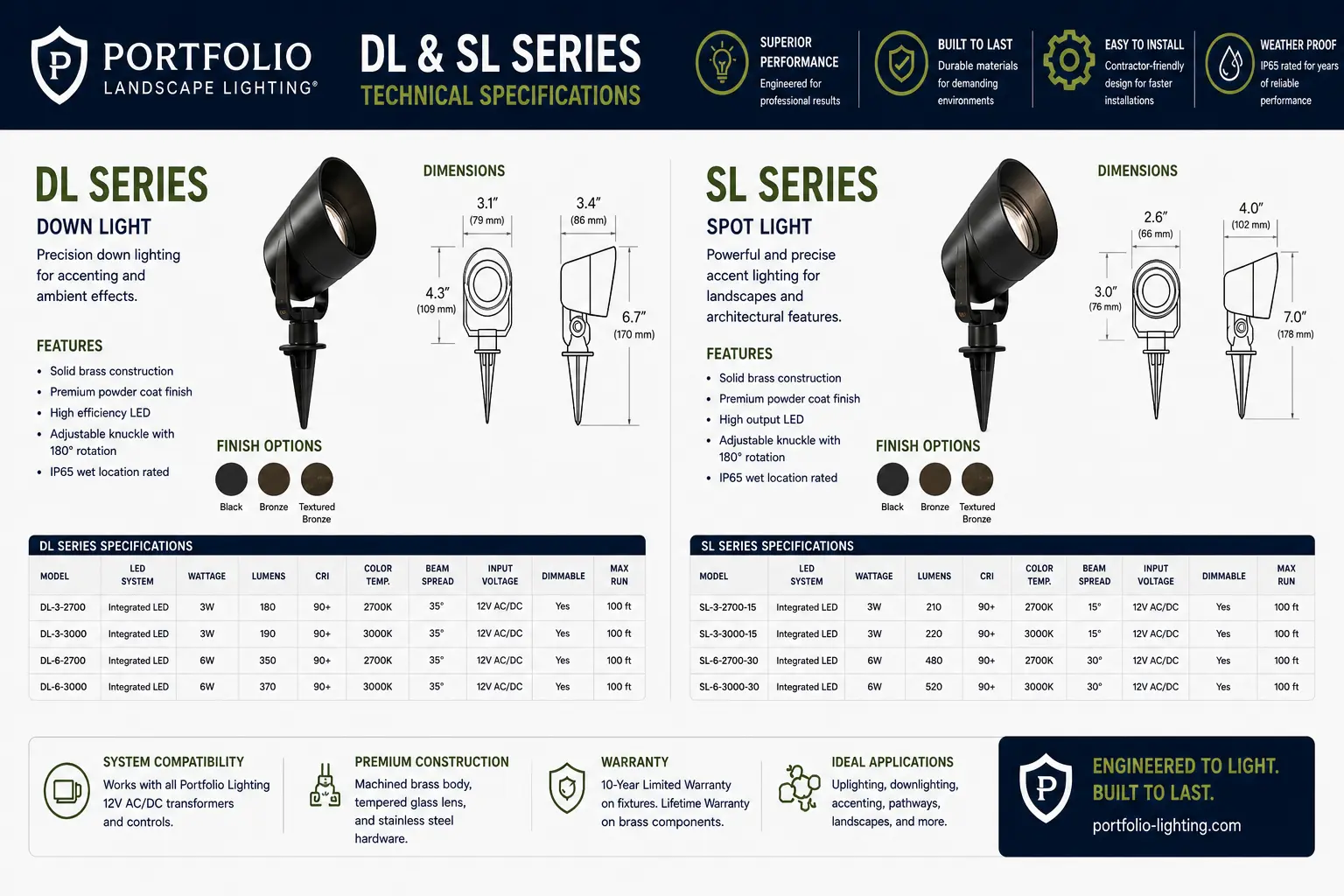

Portfolio DL and SL Series Technical Specs: Legacy Model Guide

Quick Answer: Portfolio DL vs SL Series (What You Actually Need to Know)

The DL series are low-profile recessed or downlight fixtures, while the SL series are directional spot and accent lights. Both run on 12V low-voltage systems, but most failures are not the LED—they are caused by connector corrosion, voltage drop, or transformer issues.

• DL Series: Deck, step, soffit, and hardscape lights
• SL Series: Spotlights, uplights, and accent lighting
• Most common failure: Bad connector, not the LED
• Best fix path: Test voltage → inspect connector → then replace fixture

If you don’t have a model number, use the Portfolio lighting model lookup tool to identify your fixture before troubleshooting.

Logic Summary: How to Diagnose DL & SL Lighting Failures

1. Confirm 12V output at transformer — eliminates power source issues
2. Check voltage at the fixture — identifies wire drop or connector failure
3. Inspect the pierce connector — most common real-world failure point
4. Look for moisture intrusion — especially on SL swivel joints and DL trims
5. Replace fixture only if voltage is correct — avoids unnecessary replacements

In my experience: 70%+ of “dead fixtures” are actually connection failures, not LED failures.

Because DL and SL fixtures are low-voltage lights, it helps to understand the whole system. The Portfolio low voltage lighting guide explains transformer load, wiring, connectors, and voltage drop in more detail.

Why DL and SL Fixtures Actually Fail (Real-World Patterns)

• Connector corrosion: Pierce connectors lose bite or oxidize over time
• Water intrusion: DL trims and SL swivel joints trap moisture
• Voltage drop: Long wire runs reduce output at far fixtures
• Integrated LED failure: Non-serviceable modules eventually burn out

When I test these in the field, the connector is almost always the first failure—not the light itself.

Once you know which part is failing, the Portfolio lighting model parts directory can help you move from model number to the likely replacement part.

If you’ve already identified the failure point, you can browse common replacements in the Portfolio lighting parts and accessories guide. I use that page to match connectors, bulbs, stakes, and hardware before replacing the entire fixture.

Identify Your Series: DL vs SL

The easiest way to separate these legacy Portfolio fixtures is by use case. DL models are normally downlight, recessed, deck, step, soffit, or hardscape-style fixtures. SL models are normally specialty, spot, accent, tree, wall-wash, or directional landscape fixtures.

For a full step-by-step diagnostic process, follow the Portfolio lighting troubleshooting guide I use in the field.

Sticker Location Guide: Where to Find the Silver UL Label

On these older Portfolio models, the model number is often not on the visible face of the fixture. I would check these areas before assuming the label is gone:

If your sticker is faded and you need to visually match the fixture, check the Portfolio lighting catalog for older product styles and model clues.

• DL recessed/downlight models: back of trim, underside of mounting body, inside the recessed cup, or lead-wire tag.
• SL spotlight models: underside of the mounting base, near the swivel joint, on the fixture head, or on the low-voltage lead tag.
• Original box: often shows the Lowe's item number while the fixture sticker shows the model number.
• Old manual sheet: may show both model and item number, which is valuable for long-tail searches.

Simple SL-Series Daisy-Chain Wiring Diagram

Many SL spotlights are installed in a daisy-chain layout. That works on shorter runs, but it can create voltage drop when multiple higher-output spotlights are stacked on one long cable.

Using these DL or SL models in a new layout? See the Landscape Lighting Transformer Sizing Guide and voltage drop calculator before adding more fixtures.

For deeper wiring references beyond this DL and SL page, use the Portfolio lighting technical manuals and wiring diagrams to compare wiring layouts, transformer setup, and low-voltage connections.

PDF Archive Strategy for DL and SL Manuals

If you have original installation sheets, this is the page where they belong. Searchers love phrases like “Model SL100RBS manual PDF” and “DL6904RBS installation sheet” because old retail pages often disappear.

For original transformer setup, timer behavior, and wiring references, use the Portfolio outdoor transformer manuals before changing your DL or SL lighting layout.

• Use file names like portfolio-sl100rbs-manual.pdf.
• Place the PDF link near the matching model card.
• Include both the item number and model number in the PDF link text.
• Keep the HTML model card even if the PDF is added later, because the card captures search intent immediately.

Looking for the Origin21 Equivalent?

Many shoppers searching these DL and SL model numbers are really looking for the modern 2026 replacement path. Since Lowe's moved many newer lighting styles toward the Origin21 brand, I would compare the old Portfolio fixture by function rather than by brand name alone.

• For DL models, compare recessed cutout size, voltage, trim diameter, color temperature, and whether the LED is integrated.
• For SL models, compare beam angle, lumens, voltage, stake thread, connector type, and fixture finish.
• Do not assume an Origin21 connector will bite properly on older heavy-gauge Portfolio cable.

For the broader cross-brand compatibility path, use Portfolio Lighting rebrand to Origin21 and universal lighting compatibility source.

If several DL or SL fixtures fail at once, the issue may be at the transformer terminals instead of the lights. See Portfolio lighting replacement terminal blocks and transformer lugs before replacing multiple fixtures.
