TL;DR: Models 284369, TC001, and 284357 at a Glance
| Model | Likely Product Type | Voltage / Power | Common Issue | Best Next Step |
|---|---|---|---|---|
| 284369 | Low-voltage landscape fixture lookup | Typically checked as 12V low-voltage fixture family | Dim light, bad bulb, corroded socket, cracked stake, water in lens | Match bulb base, lens size, fixture finish, and connector type |
| TC001 | Transformer / timer control lookup | Commonly searched as a Portfolio transformer or timing-control unit | Humming, no output, timer failure, tripping, loose terminal screws | Check load, terminals, fuse, timer, photocell, and GFCI outlet |
| 284357 | Outdoor wall lantern / wall fixture lookup | Usually treated as a 120V wall-mounted fixture | Bad bulb, corroded socket, broken glass, mounting bracket mismatch | Verify bulb type, glass fit, junction box, bracket spacing, and finish |
Logic Summary: Which Portfolio Model Do You Have?
| If Your Label Says | Most Likely Category | Start Here First | Do Not Order Until You Confirm |
|---|---|---|---|
| 284369 | Low-voltage landscape fixture | Bulb, socket, connector, lens, stake, and voltage | Bulb base, lens size, connector type, and fixture finish |
| TC001 | Transformer, timer, or power control lookup | GFCI outlet, timer, photocell, fuse, terminals, and load | Wattage, output voltage, timer type, and terminal condition |
| 284357 | Outdoor wall lantern or wall-mounted fixture | Bulb base, glass, socket, mounting bracket, and junction box | Voltage, backplate size, glass shape, bracket spacing, and finish |
Legacy Portfolio model pages are useful only when they solve the part-matching problem. A homeowner rarely needs a generic description. They need to know whether the label belongs to a transformer, a wall lantern, or a low-voltage fixture, what parts commonly fail, and which replacement details must match before ordering.
If your number does not match one of these three models, use the Portfolio Lighting model number lookup first, then return to this page for transformer, fixture, and parts logic.
Editorial Review and Compatibility Notes
Technical review by: Philip Meyer, Lighting Specialist
Last verified: April 29, 2026
This guide is reviewed for practical compatibility details including voltage, bulb base, transformer symptoms, bracket fit, glass measurement, fuse matching, and safe troubleshooting steps. Always compare the actual label and part dimensions on your fixture before ordering.
For additional model numbers, manuals, and discontinued Portfolio products, see the Portfolio lighting technical archive.
Portfolio Lighting Model 284369 Specs, Manual Help, and Parts
Model 284369 should be treated as a fixture-level lookup first. The most important questions are whether the fixture is part of a low-voltage landscape system, what bulb base it uses, whether the socket is corroded, and whether the lens, stake, or connector has failed.
Technical Specs to Confirm
- Voltage: confirm whether the fixture is connected to a 12V or 15V low-voltage transformer.
- Bulb: verify base type before buying. Many legacy landscape fixtures use wedge, bi-pin, MR-style, or integrated LED formats depending on the product family.
- Finish: compare bronze, aged bronze, oil-rubbed bronze, black, or painted metal before ordering cosmetic parts.
- Weatherproofing: inspect the lens gasket, O-ring, socket, and wire entry point for moisture damage.
- Connector: check whether the original snap connector still pierces the cable correctly.
For system-wide voltage issues, use the landscape lighting voltage drop guide. If the fixture failed after rain, use landscape lights not working after rain.
For a full list of compatible bulbs, connectors, stakes, glass, and transformer components, see Portfolio lighting parts and accessories before ordering replacements.
If this fixture is part of a larger system, review Portfolio low voltage lighting for wiring layout, cable routing, and system expansion guidance.
Portfolio TC001 Transformer Manual Help, Timer Issues, and Troubleshooting
In my experience, the model TC001 is the number users most often search when they are trying to fix a transformer, timer, photocell, or low-voltage power problem. The key is to separate transformer failure from wiring failure.
If your transformer or timer is not working correctly, follow the step-by-step checks in Portfolio lighting troubleshooting before replacing parts.
Common TC001 Problems
- Humming or buzzing: may be normal if faint, but loud buzzing can mean overload, loose mounting, worn timer, or transformer stress.
- No lights: check the GFCI outlet, timer setting, photocell, fuse, terminal screws, and landscape wire short.
- Lights flicker: inspect low-voltage connectors, undersized wire, loose lugs, or moisture in a fixture.
- Trips breaker or GFCI: disconnect the landscape wire and test transformer output by itself before blaming the transformer.
- Timer not advancing: mechanical timer tabs, digital programming, or photocell control may be the failure point.
For deeper help, see Portfolio Lighting transformer troubleshooting, Portfolio transformer tripping breaker, and Portfolio Lighting transformer replacement.
For full transformer wiring, voltage tap setup, and load calculations, see the Portfolio lighting transformer master guide.
Portfolio Lighting Model 284357 Wall Lantern Parts, Bulbs, and Bracket Notes
Model 284357 should be treated as a wall-lantern or wall-mounted fixture lookup. The most important details are bulb compatibility, glass shape, finish, mounting bracket fit, and whether the existing junction box is safe and weather-rated.
Technical Specs to Confirm
- Voltage: most wall lanterns are 120V hardwired fixtures, not low-voltage landscape fixtures.
- Bulb base: confirm the socket label before using LED replacements.
- Glass: measure height, width, curve, and retaining clips before ordering replacement glass.
- Mounting: confirm bracket spacing, canopy size, and junction box condition.
- Finish: compare aged bronze, oil-rubbed bronze, black, or nickel tones before ordering visible parts.
For mounting hardware, see Portfolio Lighting mounting hardware and bracket replacement. For outdoor box safety, use outdoor lighting junction box requirements.
For safe wall installation and wiring requirements, see outdoor lighting junction box requirements before mounting this fixture.
Comparison Tool: Which Model Are You Working On?
| Model | Best Category | Look For | Most Likely Replacement | Safety Level |
|---|---|---|---|---|
| 284369 | Low-voltage fixture | Stake, lens, socket, low-voltage connector, lamp base | Bulb, stake, connector, lens gasket, compatible fixture | Lower voltage, but still disconnect transformer first |
| TC001 | Transformer / timer | Wattage label, timer dial, photocell, terminal block, fuse | Fuse, timer workaround, terminal screw, replacement transformer | 120V input side requires extra caution |
| 284357 | Wall lantern | Socket label, glass panels, mounting plate, backplate, finish | Bulb, glass, mounting bracket, socket, fixture replacement | Hardwired 120V fixture; turn off breaker |
How to Replace the Bulb in Portfolio Model 284369
- Turn off the transformer: unplug or switch off the low-voltage transformer before opening the fixture.
- Remove the lens or retaining ring: keep track of small screws, gasket pieces, clips, or O-rings.
- Match the bulb exactly: compare voltage, base, wattage, length, and beam style.
- Inspect the socket: look for green corrosion, white powder, loose contacts, or heat discoloration.
- Test before sealing: power the fixture briefly before tightening the lens or burying disturbed wire.
If you are switching from halogen to LED, check the landscape lighting LED bulbs guide and the landscape lighting voltage drop calculator.
To explore more models, parts, and repair paths, use the full Portfolio Lighting model library index .
Common Replacement Parts Cross-Reference
| Part | Model Most Likely Affected | What to Measure | Common Mistake |
|---|---|---|---|
| Replacement bulb | 284369, 284357 | Voltage, base, wattage, length, enclosure rating | Buying by appearance instead of socket label |
| Transformer fuse | TC001 | Fuse amperage, voltage rating, physical size | Upsizing the fuse instead of fixing overload |
| Terminal screw or lug | TC001 | Screw size, thread, terminal condition, wire gauge | Leaving loose strands under the screw |
| Glass or lens | 284369, 284357 | Height, width, curve, thickness, clip style | Ordering by model family without measuring glass |
| Mounting bracket | 284357 | Junction box spacing, backplate size, screw thread | Assuming every crossbar fits every backplate |
| Low-voltage connector | 284369 | Wire gauge, cable type, connector style | Reusing a corroded pierce connector |

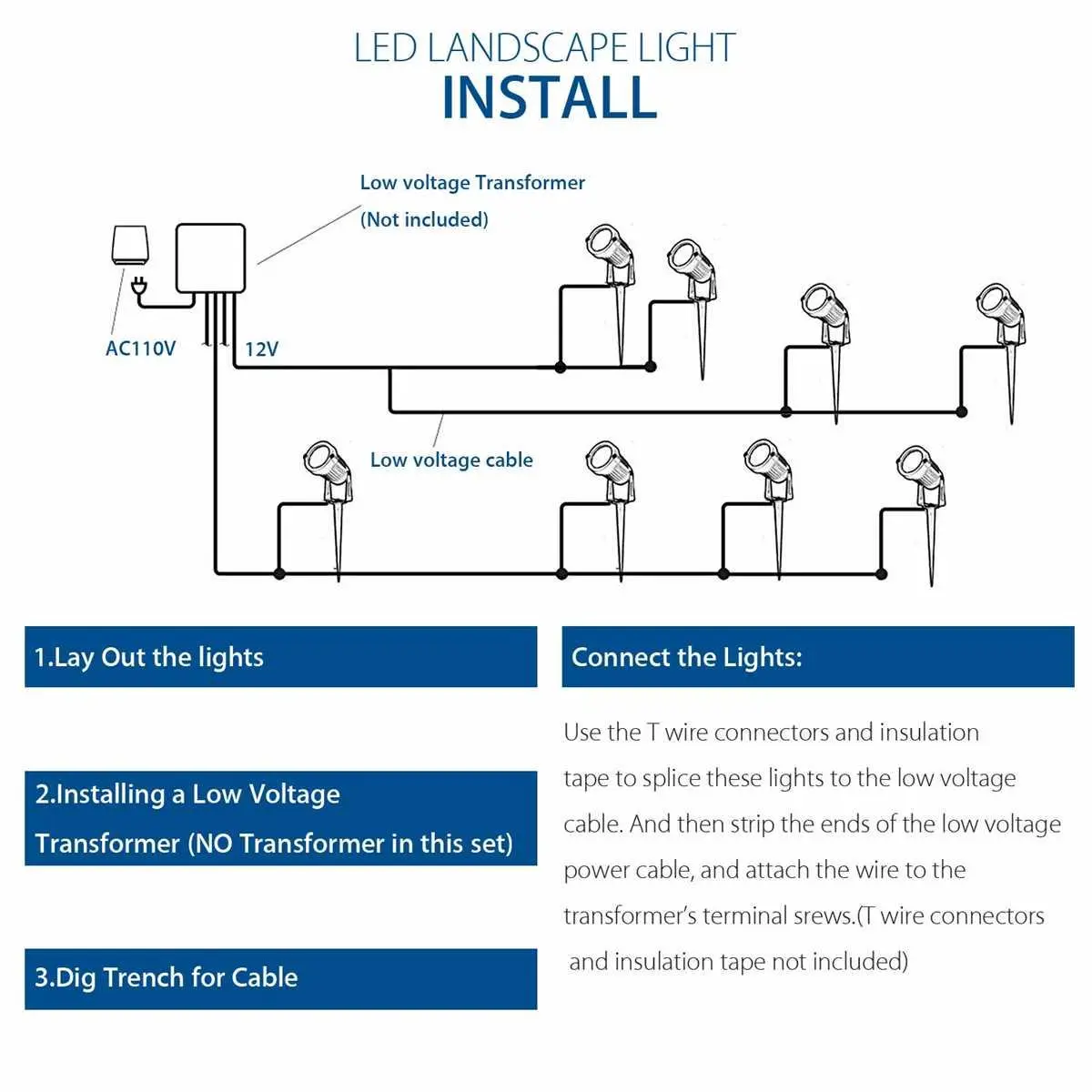

Manual Preview and Wiring Diagram
An official PDF manual for Portfolio models 284369, TC001, and 284357 is not always available online. These models are often found on older fixtures, packaging, or partial labels, so it’s important to confirm parts and wiring details before ordering replacements.
Manual Availability
Use the guides below to identify the correct parts, wiring setup, and fixture type for your model. If you find the original manual, you can download or compare it here.
📄 Browse Portfolio Lighting Manuals 🔎 Look Up Your Model NumberHelpful Diagrams for These Models
- TC001 transformer: timer controls, photocell, fuse location, terminal screws, and low-voltage output connections.
- 284369 fixture: lens, gasket, bulb, socket, stake, and low-voltage connector.
- 284357 wall lantern: mounting bracket, backplate, socket, glass panels, and cap nuts.
Human-First Troubleshooting Notes
When the transformer is blamed incorrectly
A TC001 transformer may be blamed when the real issue is a shorted wire run, wet fixture, corroded pierce connector, overloaded wattage total, or loose terminal screw. Disconnect the landscape wire from the transformer and test the transformer separately before replacing it.
When the wall lantern is blamed incorrectly
A 284357 wall lantern may appear failed when the real issue is a bad wall switch, failed photocell, loose neutral, wrong LED bulb type, or a corroded outdoor socket. Turn off the breaker before inspecting any 120V fixture.
When the low-voltage fixture is blamed incorrectly
A 284369 fixture may be fine while the connector is the actual failure point. If the fixture works when temporarily connected closer to the transformer, the problem is likely voltage drop, cable damage, or a bad connector.
If your transformer plugs into an outdoor outlet, review GFCI requirements for outdoor lighting to ensure safe operation.
Portfolio Models 284369, TC001, and 284357 FAQ
Why is my TC001 transformer humming?
A faint hum can be normal on some transformers, but loud buzzing usually means overload, loose mounting screws, poor terminal contact, timer wear, or internal transformer stress. Reduce the wattage load and inspect the terminal connections before replacing the transformer.
Can I use LED bulbs in model 284357?
Usually yes if the LED bulb matches the socket base, voltage, fixture enclosure rating, wattage limit, and control type. If the lantern is enclosed, choose an LED bulb rated for enclosed fixtures and outdoor use where applicable.
Can I replace TC001 with a newer transformer?
Yes, if the replacement transformer matches or exceeds the required wattage, supports the correct low-voltage output, is outdoor rated, and works with your wiring layout. Do not exceed the transformer load rating.
What should I measure before buying replacement glass?
Measure height, width, curve, thickness, clip style, and whether the glass is flat, seeded, frosted, clear, or curved. Model number alone is often not enough for legacy Portfolio glass.
What if my model number label is partly missing?
Use the model number lookup guide and compare the fixture category, voltage, bulb base, finish, transformer wattage, and mounting style. Partial labels can often be identified by combining the visible number with the product type.
