Malibu Top 40 Database

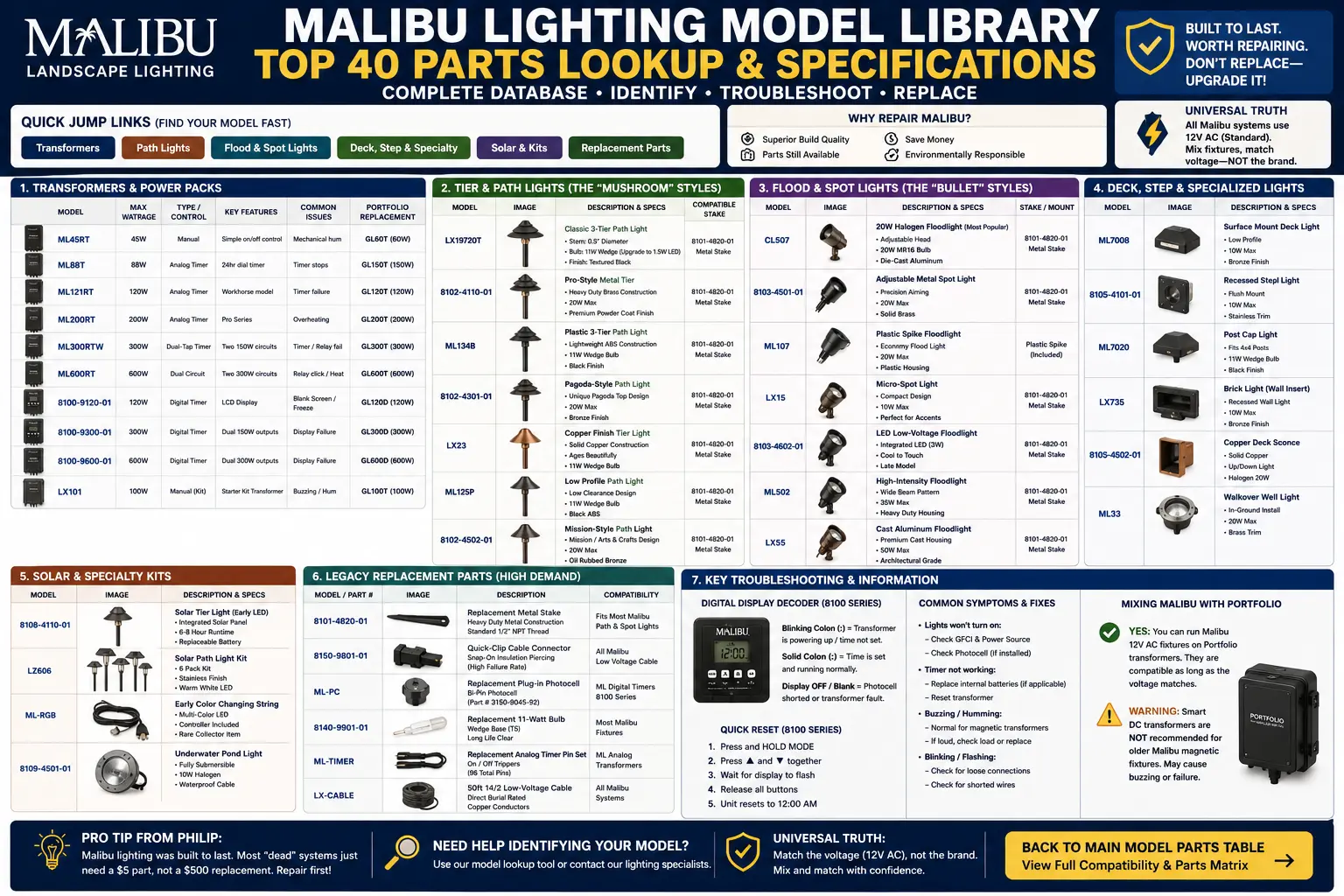

Malibu Lighting Model Library Top 40 Parts Lookup

Quick Answer The highest-volume Malibu model searches usually involve ML transformer prefixes, LX fixture prefixes, and 8100 digital power-pack or parts prefixes. For repair, match 12V AC output, wattage, connector style, bulb base, stake diameter and housing condition before replacing the part.

Because Malibu dominated big-box landscape lighting from the Intermatic era through the early LED transition, many homeowners still search by short model prefixes like ML121RT, ML300RTW, LX19720T, and 8100-9120-01.

Malibu lighting model library top 40 parts lookup for ML LX and 8100 series transformers fixtures and replacement parts

What You Will Learn

Quick Answer: Malibu ML, LX & 8100 Model Lookup

The most searched Malibu lighting models are the ML121RT, ML300RTW and 8100-9120-01 transformers, along with LX path lights, Malibu quick-clip connectors, replacement stakes and 12V wedge bulbs.

Most Malibu systems use standard 12V AC low-voltage output, which means many transformers, fixtures and connectors can still be repaired using modern waterproof splices, LED retrofit lamps and Portfolio-style replacement transformers.

Important: Never replace a Malibu part using the model number alone. Always match: voltage, wattage, connector style, lamp base, stake diameter, wire gauge and fixture housing condition before buying replacement parts.

Find Your Malibu Model Fast

ML121RT ML300RTW 8100-9120-01 ML45RT ML88T LX19720T CL507 8150-9801-01 ML-PC 8140-9901-01

Logic Summary: How Malibu Model Searches Usually Work

Most homeowners searching Malibu model numbers are trying to solve one of five problems:

  • Transformer stopped turning on
  • Digital display failed or shows OFF
  • Path light stake broke underground
  • Quick-clip connector corroded
  • Original Malibu replacement part is discontinued

The fastest repair path is usually:

  • Identify the model prefix (ML, LX or 8100)
  • Determine whether the issue is the transformer, fixture or connector
  • Confirm 12V AC output and total wattage load
  • Test the first fixture before replacing the transformer
  • Replace weak quick-clip connectors with waterproof gel-filled splices
Field Technician Insight: Many Malibu transformers are replaced unnecessarily. In real-world systems, the most common failures are usually underground connector corrosion, nicked cable, overloaded halogen runs, water intrusion and broken plastic stakes.

Need replacement stakes, transformers, bulbs or waterproof connectors? Visit the Malibu Lighting Replacement Parts Guide for compatible replacement components, universal upgrades and troubleshooting help for discontinued Malibu landscape lighting systems.

If your original Malibu transformer or fixtures are beyond repair, see the Portfolio Lighting Alternatives Guide for compatible low-voltage replacement systems, transformer upgrades and modern LED landscape lighting options.

How to Use This Malibu Top 40 Database

This page is a specifications and troubleshooting lookup for the common Malibu lighting models sold through big-box retailers between roughly 1990 and 2015.

Use the master table to jump to a model, then use the model card to identify the likely failure point and modern replacement direction. For broader repair strategy, also use the Malibu lighting model library, Malibu landscape lighting replacement parts guide, and discontinued landscape lighting parts guide.

The Big Three Malibu Transformers

  • ML121RT: the 120W analog workhorse. When the timer motor seizes, a modern 120W 12V AC transformer is usually the cleanest replacement.
  • ML300RTW: the 300W dual-tap analog transformer. Use load splitting, voltage testing and modern multi-tap replacement logic.
  • 8100-9120-01: the 120W digital power pack known for display failure, OFF messages and photocell confusion.

Known Malibu Failure Patterns by Series

Different Malibu model generations developed different long-term failure patterns. This table helps identify what usually fails first before replacing random parts.

Underground splice failures are one of the biggest causes of Malibu lighting problems. Visit the Low Voltage Plug & Limited-Energy Connector Guide to learn how waterproof gel-filled connectors, wire gauge matching and proper splice techniques improve long-term reliability.

Series Most Common Failure Typical Repair Direction
ML Analog Transformers Timer motor seizure and terminal corrosion Replace timer or upgrade transformer
8100 Digital Series Blank display or frozen LCD screen Reset system and isolate yard shorts
LX Path Lights Broken stakes and brittle plastic Replace stake and waterproof connector
Quick-Clip Connectors Underground corrosion and weak electrical bite Replace with gel-filled direct burial splice
Halogen Flood Lights Socket heat damage and gasket leaks Convert to lower-heat LED lamp
Solar Malibu Fixtures Battery degradation and cloudy solar panels Replace battery or complete solar head

What Usually Fails First on Malibu Lighting Systems?

In real-world Malibu systems, the transformer is often NOT the first component to fail.

  • Quick-clip connectors corroding underground
  • Broken plastic stakes from lawn equipment
  • Water inside halogen flood housings
  • Socket corrosion from gasket leaks
  • Nicked underground cable from edging or shovels
  • Voltage drop on long 14/2 wire runs
Important: If your transformer clicks but the lights stay off, disconnect the yard cable and test one known-good fixture directly at the transformer terminals before replacing the power pack.

Wondering whether modern transformers or fixtures will work with your Malibu system? The Universal Lighting Compatibility Source explains 12V AC crossover compatibility between discontinued Malibu systems and modern replacement lighting components.

Long Malibu wire runs commonly suffer from voltage drop, especially after converting old halogen fixtures to LEDs. The Landscape Lighting Voltage Drop Guide explains how cable length, transformer taps and wire gauge affect fixture brightness and LED stability.

Portfolio GL-Series Swap Logic for ML121RT and ML300RTW

Homeowners often ask whether a failed Malibu ML121RT or ML300RTW can be replaced with a Portfolio-style transformer. In most cases, the answer is yes when the replacement transformer provides compatible 12V AC output, enough wattage capacity, outdoor listing, GFCI-protected input and clean low-voltage terminals.

Specialist warning: Do not assume every modern smart transformer is the right replacement. Some LED controllers and smart drivers use DC output. Older Malibu fixtures and lamps were commonly designed around 12V AC landscape lighting, so verify output type before swapping.

For deeper compatibility, use the Portfolio compatibility guide, other brands with Portfolio connectors guide, and Portfolio transformer sizing guide.

Malibu quick-clip connectors are one of the highest-failure components in older low-voltage systems. Visit the Landscape Lighting Connector Guide for waterproof splice upgrades, direct-burial connector recommendations and troubleshooting tips for corroded underground connections.

Master Malibu Top 40 Model Parts Table

Jump directly to any model card. This table is built for searches by model prefix, part number, fixture type and failure symptom.

Many homeowners upgrade failed Malibu quick-clip connectors using modern waterproof splices and Portfolio-compatible connector systems. See Which Lighting Brands Work with Portfolio Connectors for compatibility guidance between Malibu, Portfolio, Hampton Bay, VOLT and other low-voltage lighting brands.

If your Malibu lights suddenly stopped working, use the Landscape Lighting Troubleshooting Guide to isolate transformer overloads, underground shorts, failed connectors and damaged low-voltage cable before replacing parts.

Model / Part Number Category Description Common Failure Jump
ML121RT Transformer 120W analog transformer Analog clock seizes, timer drift, output terminal corrosion Details
ML300RTW Transformer 300W dual-tap analog transformer Mechanical hum, overloaded runs, analog clock failure Details
8100-9120-01 Transformer 120W digital power pack Blank screen, frozen display, OFF message, photocell fault Details
ML45RT Transformer 45W manual transformer Undersized after LED/fixture additions, simple switch failure Details
ML88T Transformer 88W analog transformer Timer motor failure, hum, weak terminals Details
ML200RT Transformer 200W professional series Terminal heat, overload, timer failure Details
ML600RT Transformer 600W heavy duty dual 300W circuits Heat, overloaded zones, breaker trips Details
8100-9300-01 Transformer 300W digital transformer Frozen display, relay click, no output under load Details
8100-9600-01 Transformer 600W digital transformer Thermal stress, board failure, output protection trips Details
LX101 Transformer Kit Original 4-light kit transformer Undersized transformer, brittle kit connectors Details
LX19720T Path Light Classic 3-tier black path light Cracked stake, cloudy lens, corroded connector Details
8102-4110-01 Path Light Pro-style metal tier light Lens gasket leak, socket corrosion, stake damage Details
ML134B Path Light Plastic 3-tier black path light Sun-brittle cap, cracked stake, bad quick clip Details
8102-4301-01 Path Light Pagoda-style path light Water in cap, stake loosening, corroded lamp socket Details
LX23 Path Light Copper finish tier light Finish oxidation, connector corrosion, stake breakage Details
ML125P Path Light Low-profile path light Low lens height collects debris, connector failure Details
8102-4502-01 Path Light Mission-style oil rubbed bronze light Lens rattle, gasket leak, stake thread failure Details
CL507 Flood/Spot 20W halogen floodlight Socket corrosion, lens gasket leak, heat damage Details
8103-4501-01 Flood/Spot Adjustable metal spot light Pivot loosens, water enters cable gland Details
ML107 Flood/Spot Plastic spike floodlight Spike cracks, housing warps, connector fails Details
LX15 Flood/Spot Micro-spot light Tiny housing overheats, socket corrodes Details
8103-4602-01 Flood/Spot LED low-voltage floodlight Driver failure, water intrusion, flicker Details
ML502 Flood/Spot High-intensity floodlight Heat stress, gasket failure, transformer load burden Details
LX55 Flood/Spot Cast aluminum floodlight Socket corrosion, lens gasket leak Details
ML7008 Deck/Step Surface mount deck light Deck moisture, screw corrosion, wire pinch Details
8105-4101-01 Deck/Step Recessed step light Water trapped behind faceplate, bad splice Details
ML7020 Deck/Step Post cap light Post movement, wire rub, cap corrosion Details
LX735 Deck/Step Brick light wall insert Moisture behind wall, lens clip failure Details
8105-4302-01 Deck/Step Copper deck sconce Finish aging, screw corrosion, connector failure Details
ML33 Deck/Step Walkover well light Water pooling, lens seal failure, socket corrosion Details
8108-4110-01 Solar/Specialty Solar tier light early LED Battery failure, cloudy panel, weak LED board Details
LZ606 Solar/Specialty Solar path light kit Battery/panel degradation, plastic stake cracks Details
ML-RGB Solar/Specialty Early color changing string light Controller failure, water at connectors Details
8109-4501-01 Solar/Specialty Underwater pond light Seal failure, water intrusion, transformer trip Details
8101-4820-01 Legacy Part Replacement metal stake Thread mismatch, seized stem, corrosion Details
8150-9801-01 Legacy Part Quick-clip cable connector High-resistance heat, corrosion, weak bite Details
ML-PC Legacy Part Replacement plug-in photocell Shorted sensor, false daylight, OFF message Details
8140-9901-01 Legacy Part 11W wedge bulb Burnout, heat discoloration, socket corrosion Details
ML-TIMER Legacy Part Analog timer pin set Missing pins, worn dial, stuck schedule Details
LX-CABLE Legacy Part 50ft 14/2 low-voltage cable reel Nicks, oxidation, poor old connector bite Details

All Malibu Top 40 Model Specification Cards

Each card below provides the model identity, technical profile, common failure pattern and compatible replacement direction.

ML121RT Transformer

Many discontinued Malibu transformers can be replaced using modern multi-tap low-voltage transformers with similar 12V AC output logic. Visit the Portfolio Lighting Transformer Replacement Guide for wattage matching, wiring guidance and upgrade recommendations.

Legacy identity: 120W analog transformer

Technical profile: 12V AC, analog timer, workhorse starter-kit power pack

Common failure pattern: Analog clock seizes, timer drift, output terminal corrosion

Compatible replacement path: Swap to modern 120W 12V AC transformer; Portfolio GL-series logic is usually the closest replacement direction

Information gain note: For searchers using only the prefix and number, ML121RT should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML300RTW Transformer

Legacy identity: 300W dual-tap analog transformer

Technical profile: 12V AC, high-capacity analog power pack, often used on larger yards

Common failure pattern: Mechanical hum, overloaded runs, analog clock failure

Compatible replacement path: Modern 300W multi-tap 12V AC transformer or Portfolio GL-series style equivalent

Information gain note: For searchers using only the prefix and number, ML300RTW should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8100-9120-01 Transformer

Legacy identity: 120W digital power pack

Technical profile: 12V AC, digital display, photocell/timer logic

Common failure pattern: Blank screen, frozen display, OFF message, photocell fault

Compatible replacement path: Replace with modern 120W digital transformer; test cable run first

Information gain note: For searchers using only the prefix and number, 8100-9120-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

Troubleshooting a blank screen, flashing display or failed timer on your 8100-series Malibu transformer? Visit the Malibu 8100-9120-01 Transformer Manual & Troubleshooting Guide for reset logic, overload testing and transformer diagnostics.

↑ Back to Master Table

ML45RT Transformer

Legacy identity: 45W manual transformer

Technical profile: 12V AC, small starter kit transformer

Common failure pattern: Undersized after LED/fixture additions, simple switch failure

Compatible replacement path: 45W–60W outdoor-rated 12V AC replacement

Information gain note: For searchers using only the prefix and number, ML45RT should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML88T Transformer

Legacy identity: 88W analog transformer

Technical profile: 12V AC, analog timer, mid-size kit unit

Common failure pattern: Timer motor failure, hum, weak terminals

Compatible replacement path: 88W–120W modern 12V AC transformer

Information gain note: For searchers using only the prefix and number, ML88T should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML200RT Transformer

Legacy identity: 200W professional series

Technical profile: 12V AC, higher-load landscape transformer

Common failure pattern: Terminal heat, overload, timer failure

Compatible replacement path: 200W–300W multi-tap transformer after load calculation

Information gain note: For searchers using only the prefix and number, ML200RT should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML600RT Transformer

Legacy identity: 600W heavy duty dual 300W circuits

Technical profile: 12V AC, two heavy-load output sections

Common failure pattern: Heat, overloaded zones, breaker trips

Compatible replacement path: Split into two modern 300W transformers or one listed 600W unit

Information gain note: For searchers using only the prefix and number, ML600RT should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8100-9300-01 Transformer

Legacy identity: 300W digital transformer

Technical profile: 12V AC, digital timer power pack

Common failure pattern: Frozen display, relay click, no output under load

Compatible replacement path: 300W digital or multi-tap transformer; verify downstream shorts

Information gain note: For searchers using only the prefix and number, 8100-9300-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8100-9600-01 Transformer

Legacy identity: 600W digital transformer

Technical profile: 12V AC, high-capacity digital unit

Common failure pattern: Thermal stress, board failure, output protection trips

Compatible replacement path: Modern 600W commercial-style transformer or split loads

Information gain note: For searchers using only the prefix and number, 8100-9600-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

LX101 Transformer Kit

Legacy identity: Original 4-light kit transformer

Technical profile: Low-wattage 12V AC kit transformer

Common failure pattern: Undersized transformer, brittle kit connectors

Compatible replacement path: Replace transformer and connectors; keep usable fixtures only

Information gain note: For searchers using only the prefix and number, LX101 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

LX19720T Path Light

Legacy identity: Classic 3-tier black path light

Technical profile: 12V path light, mushroom/tier style, typically socketed

Common failure pattern: Cracked stake, cloudy lens, corroded connector

Compatible replacement path: LED lamp retrofit and universal stake/connector repair

Information gain note: For searchers using only the prefix and number, LX19720T should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8102-4110-01 Path Light

Legacy identity: Pro-style metal tier light

Technical profile: 12V metal tier fixture, stronger salvage candidate

Common failure pattern: Lens gasket leak, socket corrosion, stake damage

Compatible replacement path: Keep housing; replace connector, gasket, lamp, or stake

Information gain note: For searchers using only the prefix and number, 8102-4110-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML134B Path Light

Legacy identity: Plastic 3-tier black path light

Technical profile: 12V budget plastic tier fixture

Common failure pattern: Sun-brittle cap, cracked stake, bad quick clip

Compatible replacement path: Repair only if housing is intact; otherwise replace fixture

Information gain note: For searchers using only the prefix and number, ML134B should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8102-4301-01 Path Light

Legacy identity: Pagoda-style path light

Technical profile: 12V decorative pagoda path fixture

Common failure pattern: Water in cap, stake loosening, corroded lamp socket

Compatible replacement path: Replace lamp/connector; salvage if cap and lens are solid

Information gain note: For searchers using only the prefix and number, 8102-4301-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

LX23 Path Light

Legacy identity: Copper finish tier light

Technical profile: 12V decorative tier fixture with copper-look finish

Common failure pattern: Finish oxidation, connector corrosion, stake breakage

Compatible replacement path: Good salvage candidate if metal cap remains solid

Information gain note: For searchers using only the prefix and number, LX23 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML125P Path Light

Legacy identity: Low-profile path light

Technical profile: 12V low-profile walkway fixture

Common failure pattern: Low lens height collects debris, connector failure

Compatible replacement path: Clean lens, check voltage, retrofit LED lamp

Information gain note: For searchers using only the prefix and number, ML125P should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8102-4502-01 Path Light

Legacy identity: Mission-style oil rubbed bronze light

Technical profile: 12V mission-style fixture, late decorative line

Common failure pattern: Lens rattle, gasket leak, stake thread failure

Compatible replacement path: Replace stake and connector before replacing fixture

Information gain note: For searchers using only the prefix and number, 8102-4502-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

CL507 Flood/Spot

Legacy identity: 20W halogen floodlight

Technical profile: 12V halogen flood/spot; high heat original lamp

Common failure pattern: Socket corrosion, lens gasket leak, heat damage

Compatible replacement path: Convert to LED if base/clearance matches

Information gain note: For searchers using only the prefix and number, CL507 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8103-4501-01 Flood/Spot

Legacy identity: Adjustable metal spot light

Technical profile: 12V adjustable metal spot fixture

Common failure pattern: Pivot loosens, water enters cable gland

Compatible replacement path: Replace connector/gasket; keep metal body if dry

Information gain note: For searchers using only the prefix and number, 8103-4501-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML107 Flood/Spot

Legacy identity: Plastic spike floodlight

Technical profile: 12V plastic spike flood

Common failure pattern: Spike cracks, housing warps, connector fails

Compatible replacement path: Often better to replace with metal LED spot

Information gain note: For searchers using only the prefix and number, ML107 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

LX15 Flood/Spot

Legacy identity: Micro-spot light

Technical profile: 12V compact accent light

Common failure pattern: Tiny housing overheats, socket corrodes

Compatible replacement path: Use lower-watt LED and check heat clearance

Information gain note: For searchers using only the prefix and number, LX15 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8103-4602-01 Flood/Spot

Legacy identity: LED low-voltage floodlight

Technical profile: Late-model integrated LED flood

Common failure pattern: Driver failure, water intrusion, flicker

Compatible replacement path: Test voltage first; replace fixture if driver is sealed

Information gain note: For searchers using only the prefix and number, 8103-4602-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML502 Flood/Spot

Legacy identity: High-intensity floodlight

Technical profile: 12V high-output flood, often halogen

Common failure pattern: Heat stress, gasket failure, transformer load burden

Compatible replacement path: LED conversion lowers load and heat

Information gain note: For searchers using only the prefix and number, ML502 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

LX55 Flood/Spot

Legacy identity: Cast aluminum floodlight

Technical profile: 12V cast aluminum body

Common failure pattern: Socket corrosion, lens gasket leak

Compatible replacement path: Strong salvage candidate; retrofit LED lamp

Information gain note: For searchers using only the prefix and number, LX55 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML7008 Deck/Step

Legacy identity: Surface mount deck light

Technical profile: 12V surface deck light

Common failure pattern: Deck moisture, screw corrosion, wire pinch

Compatible replacement path: Replace gasket/screws and waterproof splice

Information gain note: For searchers using only the prefix and number, ML7008 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8105-4101-01 Deck/Step

Legacy identity: Recessed step light

Technical profile: 12V recessed step/wall fixture

Common failure pattern: Water trapped behind faceplate, bad splice

Compatible replacement path: Inspect cavity and use waterproof connectors

Information gain note: For searchers using only the prefix and number, 8105-4101-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML7020 Deck/Step

Legacy identity: Post cap light

Technical profile: 12V post cap light

Common failure pattern: Post movement, wire rub, cap corrosion

Compatible replacement path: Check cable strain relief and retrofit LED lamp

Information gain note: For searchers using only the prefix and number, ML7020 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

LX735 Deck/Step

Legacy identity: Brick light wall insert

Technical profile: 12V wall/brick insert light

Common failure pattern: Moisture behind wall, lens clip failure

Compatible replacement path: Use gasket repair and verify drain path

Information gain note: For searchers using only the prefix and number, LX735 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8105-4302-01 Deck/Step

Legacy identity: Copper deck sconce

Technical profile: 12V copper-look deck sconce

Common failure pattern: Finish aging, screw corrosion, connector failure

Compatible replacement path: Good salvage if housing is intact

Information gain note: For searchers using only the prefix and number, 8105-4302-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML33 Deck/Step

Legacy identity: Walkover well light

Technical profile: 12V in-grade/well light

Common failure pattern: Water pooling, lens seal failure, socket corrosion

Compatible replacement path: High failure risk; check drainage before replacing lamp

Information gain note: For searchers using only the prefix and number, ML33 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8108-4110-01 Solar/Specialty

Legacy identity: Solar tier light early LED

Technical profile: Solar LED path/tier light

Common failure pattern: Battery failure, cloudy panel, weak LED board

Compatible replacement path: Usually replace battery first; retrofit rarely worth it

Information gain note: For searchers using only the prefix and number, 8108-4110-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

LZ606 Solar/Specialty

Legacy identity: Solar path light kit

Technical profile: Solar path light kit

Common failure pattern: Battery/panel degradation, plastic stake cracks

Compatible replacement path: Replace battery only if housing is good

Information gain note: For searchers using only the prefix and number, LZ606 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML-RGB Solar/Specialty

Legacy identity: Early color changing string light

Technical profile: Low-voltage/color-changing specialty string

Common failure pattern: Controller failure, water at connectors

Compatible replacement path: Replace controller/string as system if sealed

Information gain note: For searchers using only the prefix and number, ML-RGB should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8109-4501-01 Solar/Specialty

Legacy identity: Underwater pond light

Technical profile: Low-voltage pond/submersible light

Common failure pattern: Seal failure, water intrusion, transformer trip

Compatible replacement path: Use only pond-rated replacement; do not splice underwater

Information gain note: For searchers using only the prefix and number, 8109-4501-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8101-4820-01 Legacy Part

Legacy identity: Replacement metal stake

Technical profile: Metal stake for select Malibu fixture stems

Common failure pattern: Thread mismatch, seized stem, corrosion

Compatible replacement path: Match stem diameter/thread; stronger than plastic stakes

Information gain note: For searchers using only the prefix and number, 8101-4820-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8150-9801-01 Legacy Part

Legacy identity: Quick-clip cable connector

Technical profile: Black snap connector / insulation-piercing style

Common failure pattern: High-resistance heat, corrosion, weak bite

Compatible replacement path: Replace with gel-filled direct-burial splice

Information gain note: For searchers using only the prefix and number, 8150-9801-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML-PC Legacy Part

Legacy identity: Replacement plug-in photocell

Technical profile: Photocell sensor for dusk/dawn Malibu power packs

Common failure pattern: Shorted sensor, false daylight, OFF message

Compatible replacement path: Replace sensor or bypass with timer-only transformer

Information gain note: For searchers using only the prefix and number, ML-PC should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

8140-9901-01 Legacy Part

Legacy identity: 11W wedge bulb

Technical profile: 12V wedge lamp for older path lights

Common failure pattern: Burnout, heat discoloration, socket corrosion

Compatible replacement path: Upgrade to lower-watt 12V LED wedge if compatible

Information gain note: For searchers using only the prefix and number, 8140-9901-01 should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

ML-TIMER Legacy Part

Legacy identity: Analog timer pin set

Technical profile: Mechanical timer pins/tabs for analog Malibu power packs

Common failure pattern: Missing pins, worn dial, stuck schedule

Compatible replacement path: Replace timer if parts unavailable

Information gain note: For searchers using only the prefix and number, ML-TIMER should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

LX-CABLE Legacy Part

Legacy identity: 50ft 14/2 low-voltage cable reel

Technical profile: 14/2 landscape cable for Malibu-style runs

Common failure pattern: Nicks, oxidation, poor old connector bite

Compatible replacement path: Reuse only if copper is clean and insulation is intact

Information gain note: For searchers using only the prefix and number, LX-CABLE should be matched by output voltage, mechanical fit, connector style and housing condition before any parts are purchased.

↑ Back to Master Table

Related Approved Guides

Searches This Malibu Database Helps Answer For Your Malibu Lighting Issues

This technical database is designed to help homeowners identify discontinued Malibu lighting models, replacement parts, transformer problems and compatibility issues without guessing.

Need deeper troubleshooting help for discontinued lighting systems? The Portfolio Lighting Replacement Handbook covers transformer failures, connector corrosion, replacement parts and field-tested repair logic for legacy low-voltage lighting systems.

Older Malibu systems often used long 14/2 cable runs that create dim lights and unstable LED performance. The Landscape Lighting Wire Gauge Guide explains when to upgrade from 16-gauge to 12-gauge cable for better voltage stability.

Search Query What This Page Helps Identify
Malibu ML300RTW manual Transformer specs, replacement direction and troubleshooting
Malibu transformer not working Short-circuit testing and connector diagnosis
8100-9120-01 blank screen Digital display failure patterns and reset logic
Malibu quick clip replacement Modern waterproof splice alternatives
Malibu path light replacement stake Universal stake sizing and thread compatibility
Can Portfolio transformers run Malibu lights? 12V AC compatibility guidance
Malibu LED conversion problems Voltage and polarity troubleshooting
Malibu low voltage lighting troubleshooting Connector, cable and transformer diagnostics
Discontinued Does NOT Mean Unrepairable: Most Malibu lighting systems can still be repaired because they use standard 12V AC landscape lighting logic compatible with modern connectors, transformers and LED retrofit lamps.

Malibu Top 40 Model Lookup FAQ

Malibu was not the only discontinued lighting brand with replacement part problems. Visit the Discontinued Landscape Lighting Parts & Troubleshooting Guide for repair guidance covering older Portfolio, Hampton Bay, Paradise, Kichler and Malibu systems.

Which Malibu models get searched the most?

ML121RT, ML300RTW and 8100-9120-01 are the highest-frustration transformer searches because they were common power packs and often fail through timer, display or photocell issues.

Can I replace Malibu ML121RT with a Portfolio transformer?

Usually yes if the replacement is an outdoor-rated 12V AC transformer with enough wattage capacity and proper GFCI-protected input. Confirm the old lighting run is not shorted before replacing.

What should replace Malibu quick-clip connectors?

For permanent repairs, replace old quick-clip cable connectors with gel-filled direct-burial splices or waterproof low-voltage connectors sized to the cable gauge.

Are Malibu fixtures worth repairing?

Metal, glass-lens and socketed Malibu fixtures are often worth repairing. Brittle plastic fixtures, sealed failed LED boards and water-filled pond lights are lower-value salvage candidates.

Electrical Safety Disclaimer

This guide is for homeowner education and repair planning. Always follow product labels, local code, listing requirements and safe work practices. Hire a licensed electrician for damaged line-voltage wiring, repeated GFCI trips, burned plugs, hardwired transformer replacement or any installation you are not comfortable diagnosing safely.

Researching additional discontinued lighting systems? The Portfolio Lighting Master Model Technical Database contains transformer specifications, troubleshooting logic and replacement-part references for a wide range of legacy lighting products.

Recommended Lighting Resources:
