Quick Answer
Portfolio Lighting model 230132 145P should be identified by both the printed code and the physical fixture details before replacement parts are ordered. The number can help narrow the search, but the correct repair depends on voltage, fixture type, lens or shade measurements, mounting hardware, connector style and transformer compatibility.
The smartest approach is to treat 230132 145P as a model clue, then inspect the actual part that failed. Many Portfolio replacement mistakes happen when homeowners buy by number alone without measuring the lens, stake, connector, bulb base or mounting hardware.
This guide is built for homeowners trying to repair or identify Portfolio Lighting model 230132 145P. Because older Portfolio products often used similar fixture bodies across different model runs, the second code can matter just as much as the main model number.
I use this page to walk through the practical repair logic: how to identify the fixture, separate model codes from part codes, check whether the failed component is replaceable and avoid buying parts that look close but do not fit or work electrically.
Logic Summary: How to Approach Portfolio 230132 145P Parts
- Use both codes: Search with 230132 and 145P together because the secondary code may separate similar parts.
- Identify the fixture type: A path light, flood light, wall light and accent fixture require different replacement parts.
- Confirm voltage first: Do not mix line-voltage, solar and 12V low-voltage parts.
- Measure physical parts: Lens, shade, stake, gasket and mounting dimensions prevent wrong-part purchases.
- Check the connector: A dark fixture may have a failed splice, not a bad light head.
- Evaluate the system: If several components are corroded, replacing the fixture or system section may be more reliable.
What You Will Learn
How to Identify Portfolio Lighting Model 230132 145P
Start by confirming exactly where the number appears. If 230132 145P is on a fixture label, it may identify the fixture body. If it is on packaging, it may identify a retail kit or finish variation. If it is stamped inside the fixture, it may identify a component, production run or supplier part.
Use this page alongside the Portfolio Lighting model number lookup, Portfolio Lighting model parts directory, Portfolio model library and repair index and Portfolio Lighting master model technical database.
| Identification Clue | What to Inspect | Why It Matters | Best Action |
|---|---|---|---|
| 230132 model code | Fixture label, packaging, old order record or manual reference | Narrows the model family but may not identify the exact part alone | Photograph and save it |
| 145P code | Secondary sticker, stamped mark, lens label or production code | May separate similar fixtures or production runs | Use with physical measurements |
| Fixture type | Path light, spot light, flood light, wall light, deck light or accent light | Controls part categories and electrical behavior | Identify before searching parts |
| Voltage | 12V low-voltage, line-voltage or solar configuration | Determines transformer and bulb compatibility | Do not mix systems |
| Light source | Replaceable bulb, MR16, wedge base, integrated LED board or module | Determines whether repair is possible | Inspect before ordering |
| Mounting style | Stake, bracket, stem, wall mount, deck mount or screw base | Controls replacement hardware fit | Measure thread and stem size |

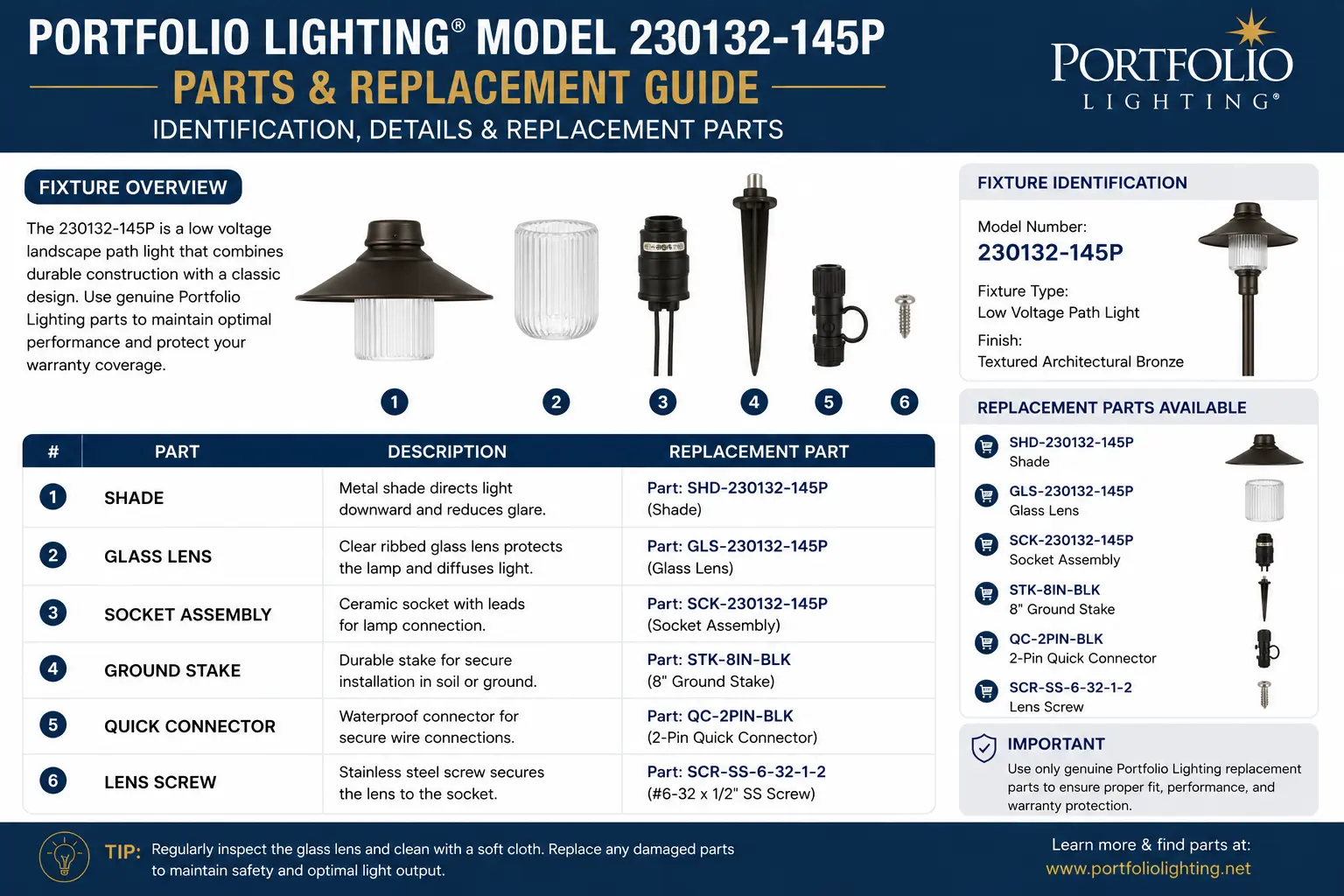

Portfolio 230132 145P Replacement Parts Map
The correct replacement part depends on which component failed. A cracked lens, broken stake, bad connector, burned socket, failed LED board and overloaded transformer all require different repair paths. Do not assume the fixture head is bad until you inspect the splice and power source.
For part categories, use Portfolio Lighting parts and accessories, Portfolio replacement parts, where to buy Portfolio replacement parts, Portfolio Lighting compatibility guide and Portfolio Lighting replacement handbook.
| Part Area | Common Failure | Replacement Logic | What to Confirm |
|---|---|---|---|
| Lens or cover | Cracked, missing, fogged or yellowed | Replace if fixture body and gasket seat are sound | Diameter, depth, shape and retainer |
| Stake or stem | Broken plastic stake, stripped thread or loose fixture | Often replaceable if thread and stem diameter match | Thread size and fixture weight |
| Connector | Flickering, intermittent power, corrosion or broken clip | Replace weak pierce clips with waterproof connectors | Wire gauge and splice type |
| Bulb or LED module | Burned out, dim, flickering or incompatible retrofit | Replace if the fixture supports serviceable light source | Voltage, base, wattage and polarity |
| Gasket or seal | Water intrusion, fogging or loose lens | Replace when compressed, torn or missing | Shape, thickness and seating surface |
| Transformer | No power, overheating, buzzing or unstable timer | Replace only after load and wire checks | Wattage, output voltage and controls |
| Wire lead | Brittle jacket, nicked insulation or blackened copper | Repair only if clean copper remains | Moisture wicking and splice quality |
Voltage, Transformer and Light Source Compatibility
Before replacing any electrical component, confirm whether the fixture is 12V low voltage, line voltage or solar. A 12V landscape-lighting fixture may depend on transformer output, wire length and total system load. A line-voltage fixture needs a different safety approach and should not be treated like a plug-and-play landscape part.
If the system is low-voltage, compare the Portfolio Lighting transformer master guide, transformer sizing guide, transformer wattage guide, Portfolio low-voltage lighting guide and landscape lighting voltage drop guide.
| Test | What a Good Result Looks Like | Warning Sign | What It Means |
|---|---|---|---|
| Visual fixture inspection | Housing is dry, solid and not warped | Water marks, cracks or corrosion | Fixture may need replacement |
| Connector check | Clean copper and tight connection | Green/black copper or loose clip | High-resistance failure likely |
| Load voltage test | Voltage remains stable with bulb connected | Meter shows voltage but light stays off | Ghost voltage or corroded connection |
| Bulb/module check | Known-good bulb works normally | New bulb flickers or stays dark | Socket, driver or wiring issue |
| Transformer load check | Transformer remains cool and stable | Buzzing, cycling or dimming system | Overload or failing transformer |
| Seal check | Lens/gasket sits evenly | Gap, crushed gasket or crooked cover | Water intrusion risk |
Connector and Wire Problems That Can Look Like Bad Parts
Many older Portfolio lighting failures are connection failures. Pierce-point clips, old low-voltage splices and buried connectors can corrode until only a tiny strand of copper remains. That strand may show voltage on a digital meter but collapse as soon as a light is attached.
Before replacing the fixture, check the low-voltage wire connector guide, landscape lighting connectors guide, landscape lighting cable guide, how to wire landscape lighting and landscape lighting splice connection requirements.
Fit Checks Before Installing Replacement Parts
Dry-fit mechanical parts before final installation. A lens should sit evenly, a stake should hold the fixture without wobble, a connector should grip clean copper and a bulb or LED module should clear the lens or shade without heat crowding. Never force a replacement part just because the listing claims compatibility.
If the fixture uses a lens, shade or cover, compare Portfolio replacement lenses, Portfolio replacement glass, replacement globes and covers, Portfolio replacement shades and Portfolio replacement hardware.
Should You Repair Model 230132 145P or Replace the Fixture?
Repair the fixture if one replaceable component failed and the housing, socket, wiring and mounting hardware are still sound. Replace the fixture if water reached the electrical area, the housing is cracked, the socket is corroded, the wire lead is brittle or multiple parts are failing together.
If exact parts are unavailable, compare replacement options for Portfolio landscape lighting, best replacements for Portfolio landscape lighting, Portfolio Lighting alternatives and low-voltage landscape lighting brand comparison.
| Condition | Repair Parts | Replace Fixture | Why |
|---|---|---|---|
| Only lens or cover is damaged | Yes | No | Simple mechanical part failure |
| One connector failed | Yes | No | Connection can usually be corrected |
| Fixture body has water damage | Maybe | Often | Electrical corrosion may continue |
| Socket or LED board is corroded | No | Often | Light source area is compromised |
| Transformer is overloaded | Maybe | Maybe | Load may need redesign |
| Multiple parts are failing | Maybe | Often | Full fixture replacement may cost less |
| Cable copper is blackened | No | Often system repair needed | Moisture has traveled through wire |
Related Portfolio Model Guides
For model-by-model repair research, compare Portfolio model 016107 WHCM432R8 lens parts, Portfolio model 0311569 kit parts, Portfolio model 17945-000 shade replacement, Portfolio model 0157561 flood light parts and Portfolio model 17794-000 manual and parts.
For deeper technical research, use the Portfolio technical archive, technical manuals and wiring diagrams and discontinued Portfolio Lighting guide.
Portfolio Lighting Model 230132 145P FAQ
What is Portfolio Lighting model 230132 145P?
Portfolio Lighting model 230132 145P should be treated as a model, item, production or component-identification code until the physical fixture is verified. Use the number to narrow the search, then confirm the fixture style, voltage, mounting hardware, lens shape, connector type and transformer compatibility.
How do I find replacement parts for Portfolio 230132 145P?
Start by photographing the fixture and label, measuring the lens or shade, checking the stake or mounting thread, identifying the bulb or LED module and inspecting the connector type. Then compare the physical part against Portfolio replacement parts instead of relying only on the model code.
Can I replace one part from model 230132 145P?
Often yes, if the failed part can be physically and electrically matched. Common replaceable parts include stakes, lenses, covers, connectors, bulbs, gaskets and sometimes photocell or transformer components.
Why does the 145P code matter?
The 145P portion may help identify a production batch, part family, fixture variation or supplier code. It should be saved and photographed because it may help separate visually similar Portfolio fixtures.
Should I replace the fixture or repair it?
Repair makes sense when the housing, socket or LED board, wiring and mounting hardware are still sound. Replace the fixture if the housing is cracked, water entered the electrical area, the socket is corroded or several parts are failing at once.
What should I check before buying parts?
Check voltage, wattage, bulb base or LED type, lens size, stake thread, connector style, wire condition, transformer rating and whether the part is exposed to wet or damp conditions.
Bottom Line
Portfolio Lighting model 230132 145P should be matched by code plus physical evidence. Use the number to start the search, then confirm fixture type, voltage, part dimensions, connector condition and transformer compatibility. That process prevents the most common replacement mistake: buying a part that looks close but fails mechanically or electrically.
