Quick Answer
Portfolio Lighting model 0311569 is best treated as a kit-level identification number, not just a single replacement part number. Before buying parts, identify every major kit component: fixtures, transformer, wire, connectors, stakes, lenses, bulbs or LED modules, photocell and mounting hardware.
The safest repair path is to replace only the failed component when the rest of the kit is still sound. If several fixtures are corroded, the transformer is unstable, or the cable and connectors are brittle, replacing the whole kit may be more reliable than chasing individual parts.
This guide is built for homeowners trying to repair or replace parts from Portfolio Lighting model 0311569. Because this appears to be a kit-style model search, the most important step is separating the kit number from the individual part numbers inside the box.
Older Portfolio lighting kits often included several fixtures, a low-voltage transformer, cable, stakes, connectors and sometimes bulbs or LED modules under one retail model number. That makes replacement confusing because the broken part may not carry the same number as the kit.
Logic Summary: How to Approach Portfolio 0311569 Repairs
- Identify the kit first: Treat 0311569 as the starting point, then inspect each component separately.
- Read the transformer label: Confirm output voltage, wattage and whether it uses a timer or photocell.
- Count the fixtures: A kit may include multiple identical lights, which helps estimate original load.
- Inspect connectors: Pierce-point, clamp-style and silicone-filled connectors are not all interchangeable.
- Measure parts physically: Lens, stake, stem, bracket and gasket dimensions matter more than listing photos.
- Check system condition: If wire, transformer and several fixtures are failing together, a full kit replacement may be smarter.
What You Will Learn
How to Identify Portfolio Lighting Model 0311569
The number 0311569 should be used as a model clue, but the physical kit components matter more when you are ordering replacement parts. Start by photographing the full fixture, transformer label, connector style, stake shape, lens or shade, mounting hardware and any printed information on the cable or fixture body.
For broader identification help, compare this page with the Portfolio Lighting model number lookup, Portfolio Lighting model parts directory, Portfolio model library and repair index and Portfolio Lighting master model technical database.
| Kit Area | What to Check | Why It Matters | Best Next Step |
|---|---|---|---|
| Kit model number | 0311569 on label, box, receipt or manual reference | Confirms the likely retail kit family | Use it to narrow the search |
| Transformer label | Output voltage, wattage, timer, photocell and model code | Controls fixture load and LED compatibility | Photograph before replacing |
| Fixture count | Number of lights originally connected | Helps estimate system wattage and transformer size | Compare to current layout |
| Connector type | Pierce-point, clip-on, screw terminal or silicone-filled splice | Determines repair method and reliability | Replace weak connectors |
| Fixture style | Path light, flood light, deck light, accent light or kit fixture | Controls part matching | Match physically, not by name alone |
| Cable condition | Gauge, brittleness, oxidation and nicked insulation | Old cable can cause voltage loss and failure | Replace if brittle or blackened |

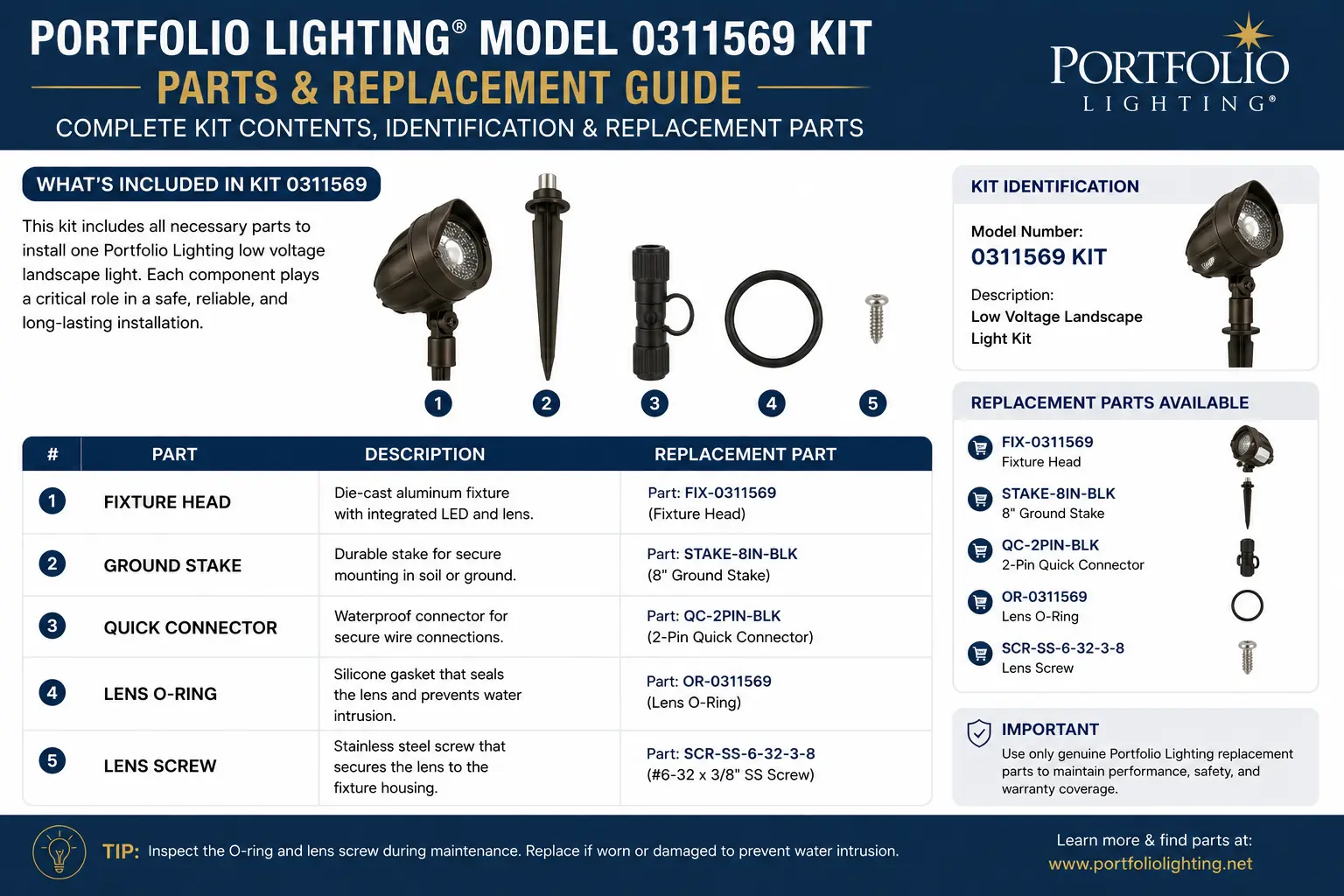

Portfolio 0311569 Kit Parts Map
A lighting kit is a system. If one fixture is out, the bad part may be the fixture, connector, cable, transformer, photocell or timer. Before replacing the light, test whether power is reaching the fixture under load and inspect the connector for green or black corrosion.
Use the main Portfolio Lighting parts and accessories hub for general part categories, then compare specific repair guides for replacement stakes, replacement lenses, bulb replacement, low-voltage wire connectors and Portfolio transformer replacement.
| Part | Common Failure | Can It Usually Be Replaced? | What to Confirm |
|---|---|---|---|
| Transformer | No output, buzzing, timer failure, photocell failure or overheating | Yes, if voltage and wattage match | Output voltage, wattage and load |
| Fixture body | Cracked housing, corrosion, water intrusion or broken bracket | Sometimes, if matching fixture exists | Mounting style and electrical type |
| Lens or cover | Cracked, missing, fogged or yellowed | Yes, if measurements match | Diameter, depth, retainer and gasket |
| Stake or stem | Broken ground stake, cracked threads or loose fixture | Often, if stem diameter matches | Thread size and fixture weight |
| Connector | Intermittent power, corrosion or broken pierce clip | Yes, and often recommended | Wire gauge and splice type |
| Cable | Brittle jacket, nicked insulation or blackened copper | Yes, but requires rewiring section | Gauge, run length and burial condition |
| Bulb or LED module | Burned out, flickering or incompatible retrofit | Sometimes | Base type, wattage, voltage and polarity |
Transformer and Load Checks for Model 0311569
If your 0311569 kit originally came with a transformer, do not replace it by size or appearance alone. Confirm the output voltage, maximum wattage, total fixture load and whether the original transformer had a timer, photocell or multi-tap output.
For transformer research, use the Portfolio Lighting transformer master guide, transformer sizing guide, transformer wattage guide, transformer replacement guide and landscape lighting transformer size calculator.
| Transformer Check | Good Sign | Warning Sign | Repair Direction |
|---|---|---|---|
| Output voltage | Stable low-voltage output under load | Voltage disappears when fixtures connect | Check terminals and transformer |
| Total wattage | Fixture load stays below transformer rating | Transformer hot, dim lights or shutdowns | Reduce load or resize transformer |
| Timer/photocell | Switches consistently at correct time | Works sometimes or cycles on/off | Inspect control system |
| Terminal block | Clean, tight low-voltage terminals | Melted plastic, rust or loose screw | Replace terminal or transformer |
| Cable connection | Wire is bright copper and firmly clamped | Blackened copper or green corrosion | Trim back or replace cable section |
Connector and Cable Problems in Older Portfolio Kits
Many older Portfolio kits used quick connectors that were convenient during installation but not always reliable after years underground. Pierce-point connectors can nick the main cable, allow moisture into the copper and create high-resistance failures that cause one fixture or an entire section to flicker.
If the connector looks green, white, crusty or black inside, replace it instead of reusing it. The low-voltage wire connector guide, landscape lighting connectors guide, landscape lighting cable guide and how to wire landscape lighting guide are useful before splicing anything back together.
| Connector Symptom | Hidden Cause | What Happens Next | Better Repair |
|---|---|---|---|
| One fixture flickers | Loose or corroded connector teeth | Voltage drops when load connects | Replace with waterproof connector |
| Fixture works when moved | Broken conductor at splice point | Intermittent open circuit | Cut back to clean copper |
| Entire zone dims | Corrosion spreading in main cable | High resistance across run | Replace damaged section |
| Lights fail after rain | Water enters connector body | Shorts or GFCI trips | Use sealed splice method |
| Meter shows voltage but light stays off | Ghost voltage through corroded strand | No usable amperage under load | Load-test the connection |
Fixture Parts: Lenses, Stakes, Bulbs and Housings
If the transformer and wiring are good, inspect the fixture itself. Look for cracked lenses, missing seals, loose sockets, broken stakes, bent mounting brackets, cloudy diffusers and water marks inside the housing.
Helpful part guides include Portfolio replacement glass, replacement globes and covers, replacement hardware, replacement LED modules and drivers and Portfolio MR16 LED replacement bulbs.
Should You Repair the 0311569 Kit or Replace the Whole System?
Repair the kit when the transformer is stable, most fixtures still work, the cable jacket is flexible and the problem is limited to a lens, stake, bulb or connector. Replace the kit when multiple fixtures have water damage, the transformer is unreliable, cable copper is blackened or the connector system keeps failing.
If you decide to replace the full kit, compare replacement options for Portfolio landscape lighting, best replacements for Portfolio landscape lighting, Portfolio Lighting alternatives and low-voltage landscape lighting brand comparisons.
| Situation | Repair Individual Parts | Replace Full Kit | Reason |
|---|---|---|---|
| One broken stake | Yes | No | Simple mechanical failure |
| One cracked lens | Yes | No, unless housing is warped | Lens may be replaceable |
| Two or more corroded fixtures | Maybe | Often better | System age is showing |
| Transformer overheats | Only after load check | Maybe | Could be overload or failing unit |
| Cable is brittle or blackened | No | Often better | Wiring damage repeats failures |
| Kit uses hard-to-find proprietary parts | Maybe | Often better long term | Replacement parts may cost more than upgrade |
Related Portfolio Model Guides
If you are comparing model-specific repair pages, review Portfolio model 016107 WHCM432R8 lens parts, Portfolio model 0157561 flood light parts, Portfolio model 0062582 manual and parts, Portfolio model 0394866 manual and parts and Portfolio model 0482436 manual and parts.
For larger repair planning, use the Portfolio Lighting replacement handbook, Portfolio technical archive and technical manuals and wiring diagrams.
Portfolio Lighting Model 0311569 FAQ
What is Portfolio Lighting model 0311569?
Portfolio Lighting model 0311569 should be treated as a kit-level model number. The number may refer to a bundled lighting kit rather than one individual replacement part.
Can I replace one part from a Portfolio 0311569 kit?
Usually yes, if the failed part can be physically and electrically matched. Common replacement candidates include stakes, lenses, wire connectors, bulbs, photocells, cable sections and sometimes the transformer.
Can I replace the whole 0311569 kit with a newer low-voltage system?
Yes, but check transformer output, total fixture wattage, connector type, wire gauge and fixture spacing first. Existing cable may be reusable if it is in good condition.
Why is kit-level model matching confusing?
A kit model may include multiple fixtures and accessories under one retail number. The transformer, fixtures, stakes, lenses and connectors may not each carry the same model number.
What should I check before buying Portfolio 0311569 replacement parts?
Photograph the full kit components, read the transformer label, count fixtures, measure lens and stake dimensions, inspect connector type, check bulb or LED module type and confirm whether the cable is usable.
Should I replace individual parts or the full kit?
Replace individual parts when the rest of the kit is sound. Replace the full kit if the transformer is failing, multiple fixtures are corroded, cable is brittle or the connector system is unreliable.
Bottom Line
Portfolio Lighting model 0311569 should be repaired as a kit, not as a single isolated part number. Identify the transformer, fixtures, cable, connectors, lenses, stakes and bulbs separately before buying replacements. If only one part failed, repair may be simple. If the kit has widespread corrosion, unstable transformer behavior or brittle cable, a full replacement path may save time and prevent repeat failures.
